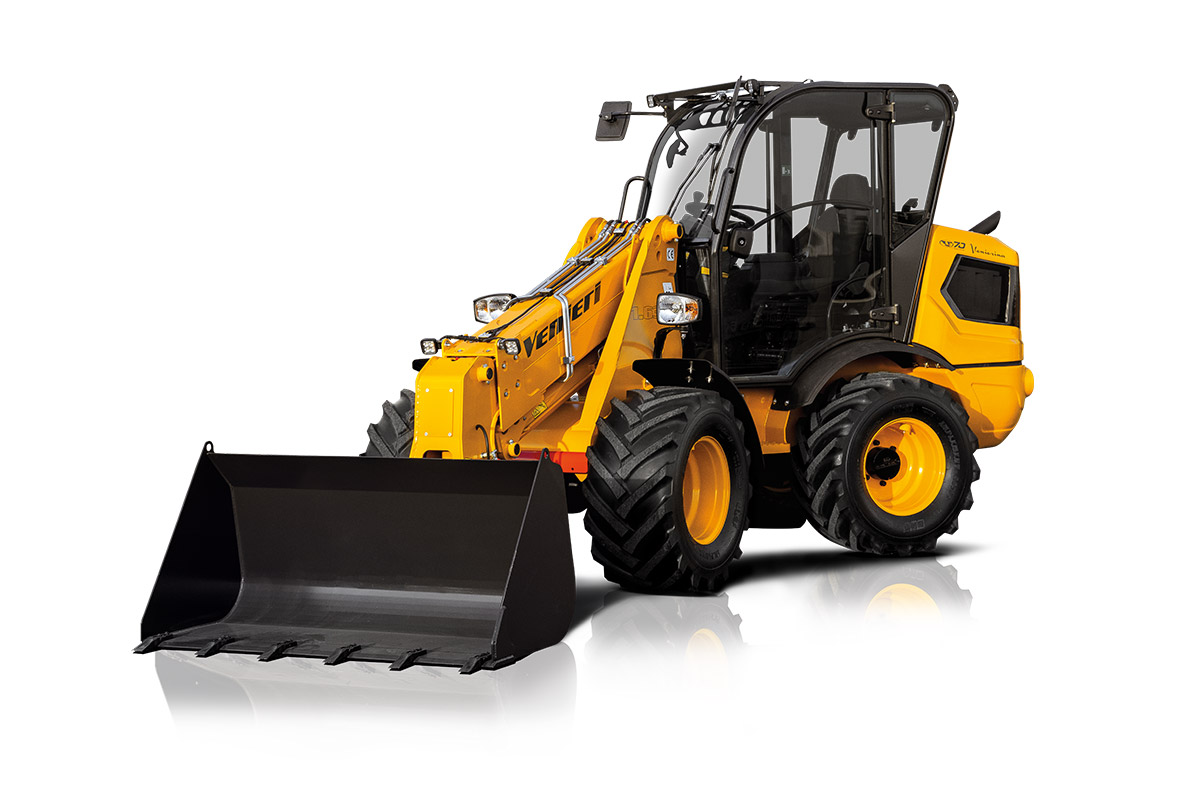

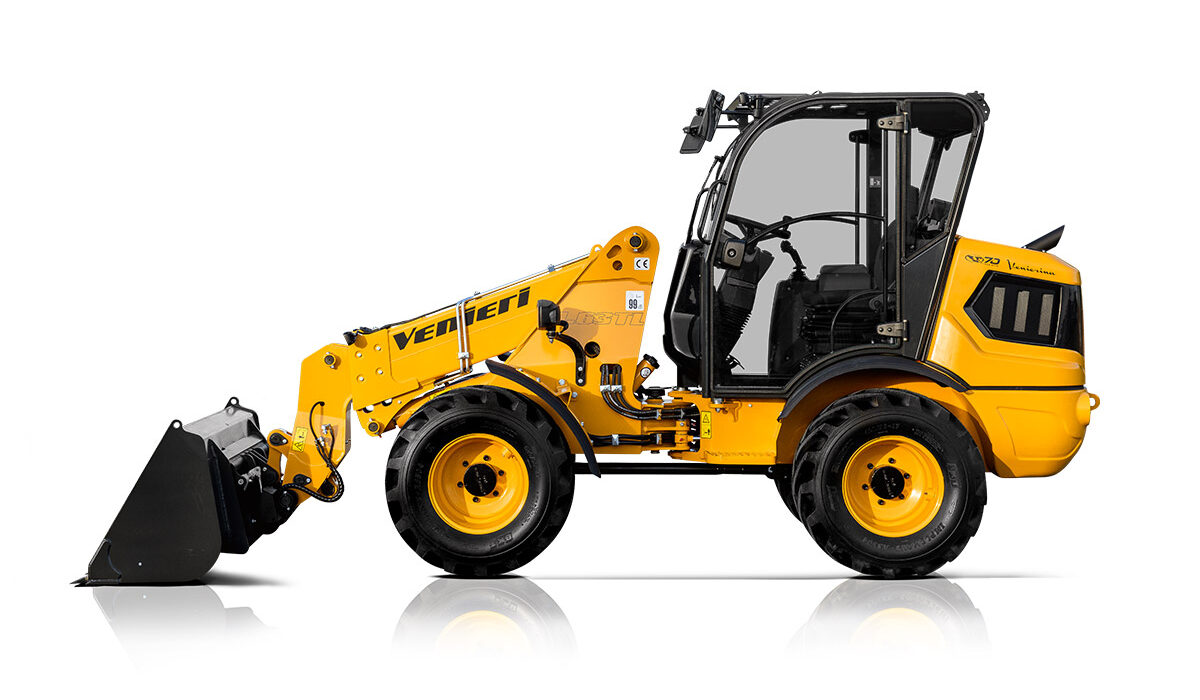

Linkage TELESCOPIC ARM
Engine Max Power 53 HP
Engine Max Power TIER 4f

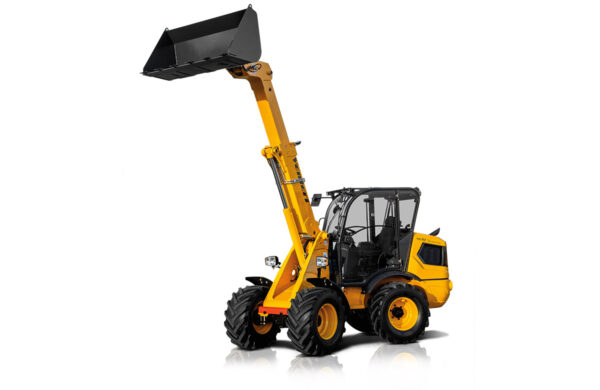

Max Load Height with Forks – Telescopic Extended 12’2”
Bucket Capacity, Min/Max 0.65 cu/yd
Max Weight 8,818 lbs
Tyres 31X15,50 – 15,3
Forks Load Capacity (EN 474-3) 2,756 lbs
Max Speed 25 mph

BASIC MACHINE

• Battery main switch
• Tool box
• Plugs with keys for fuel and hydraulic tanks
• Proportional self lock front differential
• Recovery hitch
• Warning beacon
• Soundproofing
• Spare parts calatogue
• User manual
• Type-approval for road traffic
• Safety clamp for bucket and lifting cylinders
• Anti-tipping device
• Safety block valves on lifting and bucket cylinders
• Speed selection on joystick
• Selection F/N/R on joystick
• 40 km/h travel speed
• Service brake that works on both axles
• Bucket and lifting proportionally controlled
• Auxiliary ON/OFF controlled
• Road lights front and rear
• Plastic front and rear fenders

CABIN EQUIPMENT

• 4 post Canopy homologated ROPS/FOPS I
• Front and rear windscreen wiper with washer (only for closed cabin)
• Double entrance door
• Rear openable window (only for closed cabin)
• LED work lights (2 front + 2 rear)
• Document compartment
• Seat with mechanical suspension
• Seat armrests (LH)
• Adjustable armrest (RH) for joysticks
• Buzzer
• Cabin carpet
• Radio preparation (only for closed cabin)
• Supplementary socket 12V
• Ceiling lamp (only for closed cabin)
• Rear view mirrors
• Seat belt
• Instrumentation and dashboard with LCD display
• Tilting column steering

BASIC MACHINE

• Fuel preheating (cold climates)
• Proportional self lock rear differential
• Twin beacons LED
• Speed reduction kit
• Inch pedal integrated in brake pedal
• Automatic centralized greasing system
• Ride control
• Floating mode
• Engine preheating system
• Enviromentally-friendly hydraulic oil
• Hydraulic oil ISO 46 (cold climates)
• Cyclone dust separator
• Boom worlights

CABIN EQUIPMENT

• Foldable Roll-Bar homologated ROPS/FOPS I
• Closed cabin homolgate ROPS/FOPS I, pressurized and soundproofed
• Mobile phone compartment
• Seat with pneumatic suspension
• Seat with pneumatic suspension and heating
• Manual Air Conditioning
• “Climatronic Venieri” system
• Sun visor
• Heatable rear view mirrors
• First-aid kit
• Fire extinguisher 2kg
• Safety glass breaker

SPECIAL EQUIPMENT

• Hydraulic quick coupler SKID (ISO 24410)
• Hydraulic quick coupler EURO

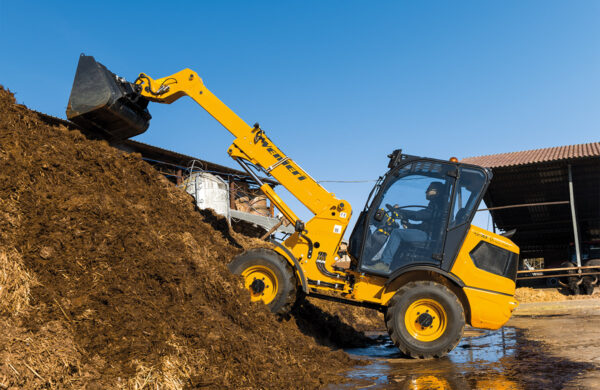

• Digging bucket
• Light material bucket
• Cement mixing bucket
• Multipurpose bucket (4 in 1)

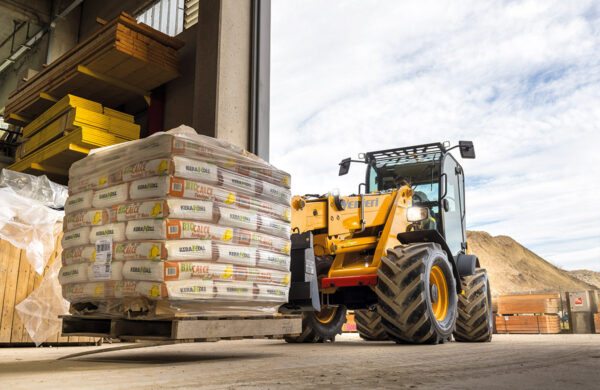

• Lifting forks
• Root rake with grapples

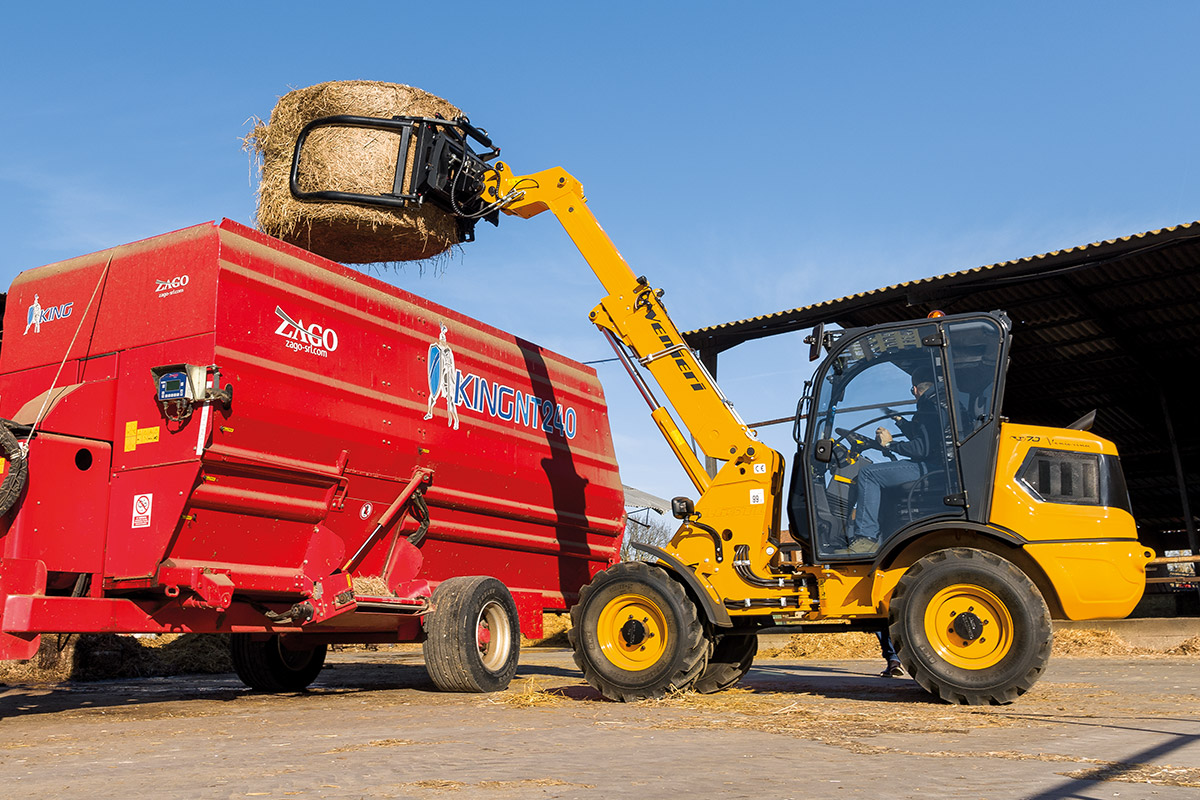

• Grab for wrapped bales
• Snow blade and “V” type snow blade
• Angle-tilt dozer blade
• Unpressurized return pipe on fixed boom
• Double auxiliary line
• Rear electrics
• Rear auxiliary
