Linkage “Z” BAR
Engine Max Power 143 HP
Engine Emission TIER 4f – DEF
Breakout Force 18,960 lbs
Static Tipping Load, Full Turn 12,125 lbs
Bucket Capacity, Min/Max 2.3 – 2.9 cu/yd
Max Weight 22,289 lbs
Tyres 17,5 x 25
Forks Load Capacity (EN 474-3) 8,113 lbs
Max Speed 25 mph

MACHINE EQUIPMENT

• Battery switch
• Maintenance tool set
• Cap with key for fuel tank
• Self-locking proportional differential on the front axle
• Tow hook
• Rotating lamp
• Soundproofing
• Spare parts catalogue
• Use and maintenance manual
• Type approval for operation on roads
• Arm and bucket lock safety device
• Device for bucket positioning parallel to the ground
• Venieri GLOBAL satellite monitoring (Annual subscription not included)
• Double-speed hydraulic fan
• Negative parking brake
• Service brake on both decks with separate circuits
• Inch pedal integrated on the brake pedal
• Greasing points grouped on frames
• ISO 46 hydraulic oil (cold climates) (On request in Italy)
• Vortex prefilter
• LED rear lights
• Electronically controlled hydrostatic transmission with 3 modes of use (Automotive, Work and ECO)

• Gearbox with 2 mechanical Shift on Fly ratios selectable on the go


CABIN EQUIPMENT

• ROPS/FOPS Level II, pressurized and soundproofed cabin
• Front and rear windshield wipers with washer
• Halogen work lights (4 front + 2 rear)
• Mobile phone compartment
• Bottle holder
• Document compartment
• Seat with mechanical suspension
• Armrests on seat
  Buzzer
• Cabin carpet
• Clothes hangers
  radio wiring
• Additional 12V socket
• Internal courtesy light
• Sunblind
• Rear-view mirrors
• Safety seat belt
• Instrumentation and dashboard complete with LCD display
• Venieri Dash Control
• Glass breaker hammer

MACHINE EQUIPMENT

• Diesel preheating for cold start
• Self-locking proportional differential on the rear axle
• Differential with 100% locking on the front axle
• CREEP mode
• CREEP mode Plus
• Reversible fan for radiator cleaning
• Automatic centralized greasing
• Ride control
• Water preheating system
• Hydraulic oil preheating system
• Biodegradable hydraulic oil

CABIN EQUIPMENT

• Work LED lights (4 front + 2 rear)
• Seat with pneumatic suspension
• Seat with pneumatic suspension and heating
• “Manual” air conditioning
• “Climatronic Venieri” automatic climate system
• Heated rear-view mirrors
• First-aid kit
• 2 kg fire extinguisher

EQUIPMENT

• Hydraulic or mechanical quick coupler
• Mixing bucket
• 4-in-1 multipurpose bucket

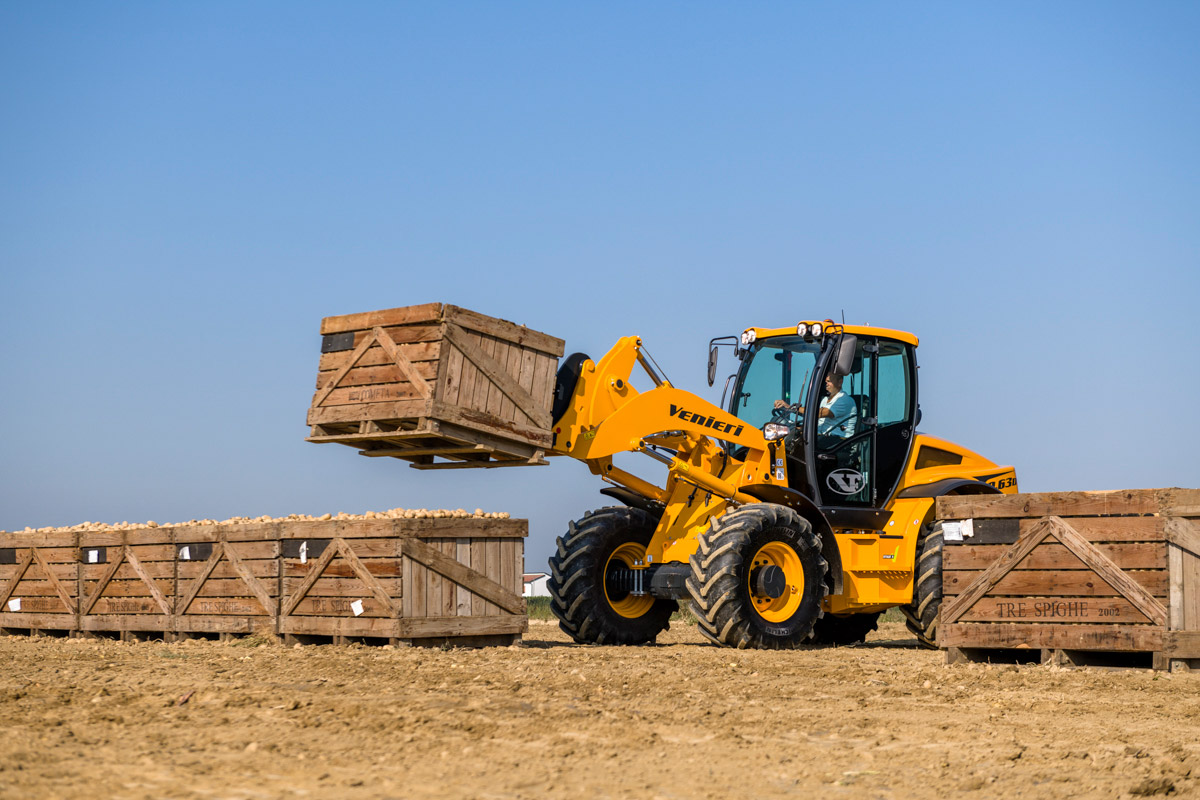

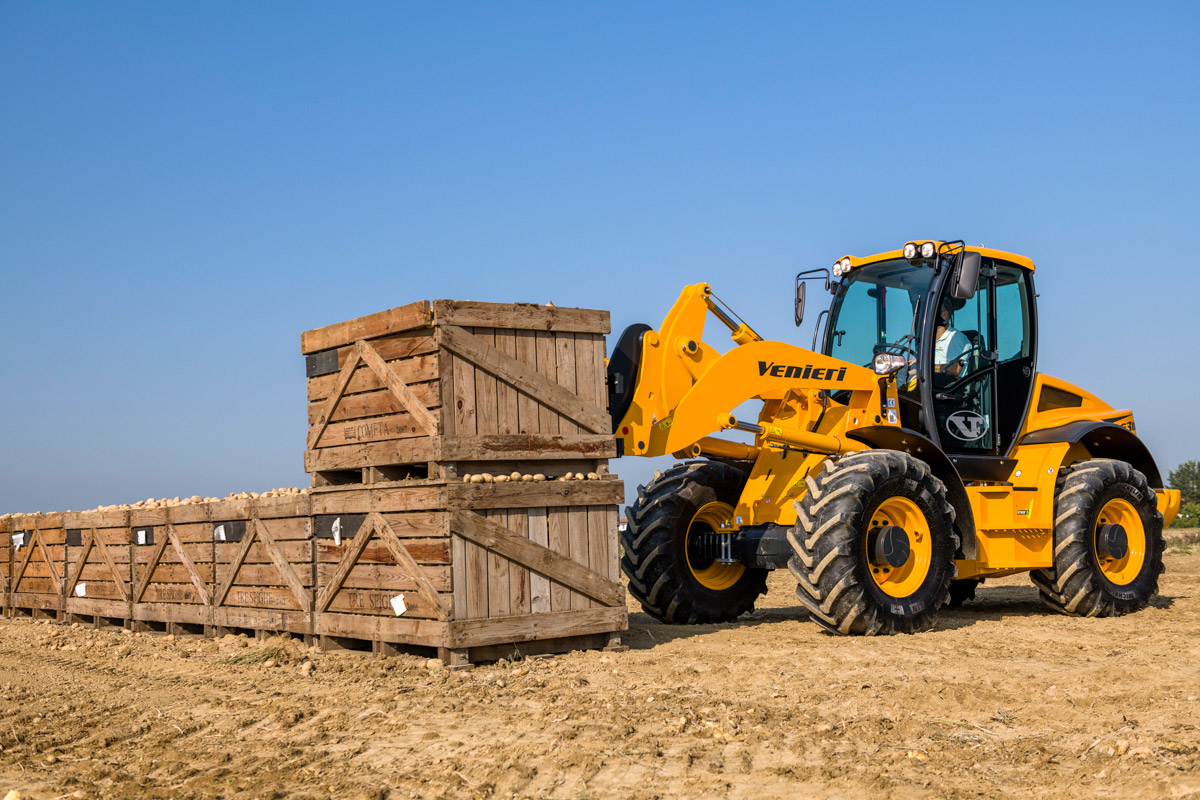

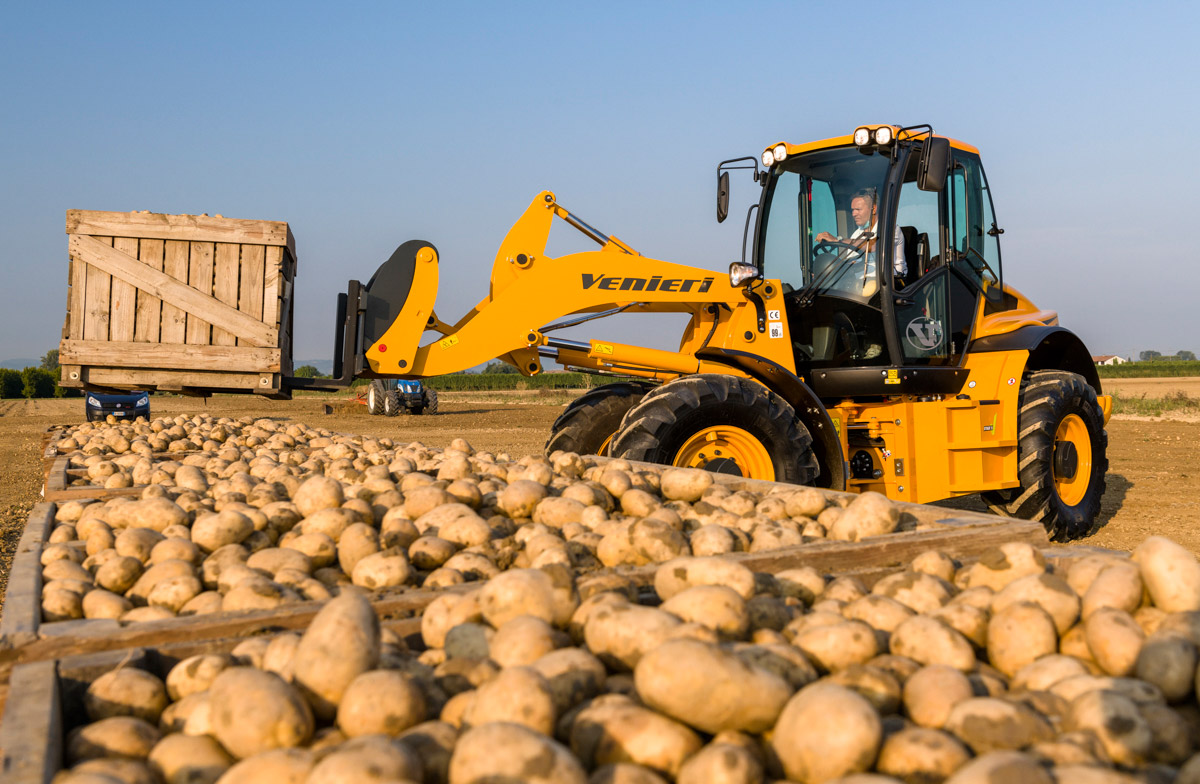

• Universal lifting forks
• Asphalt/concrete planner

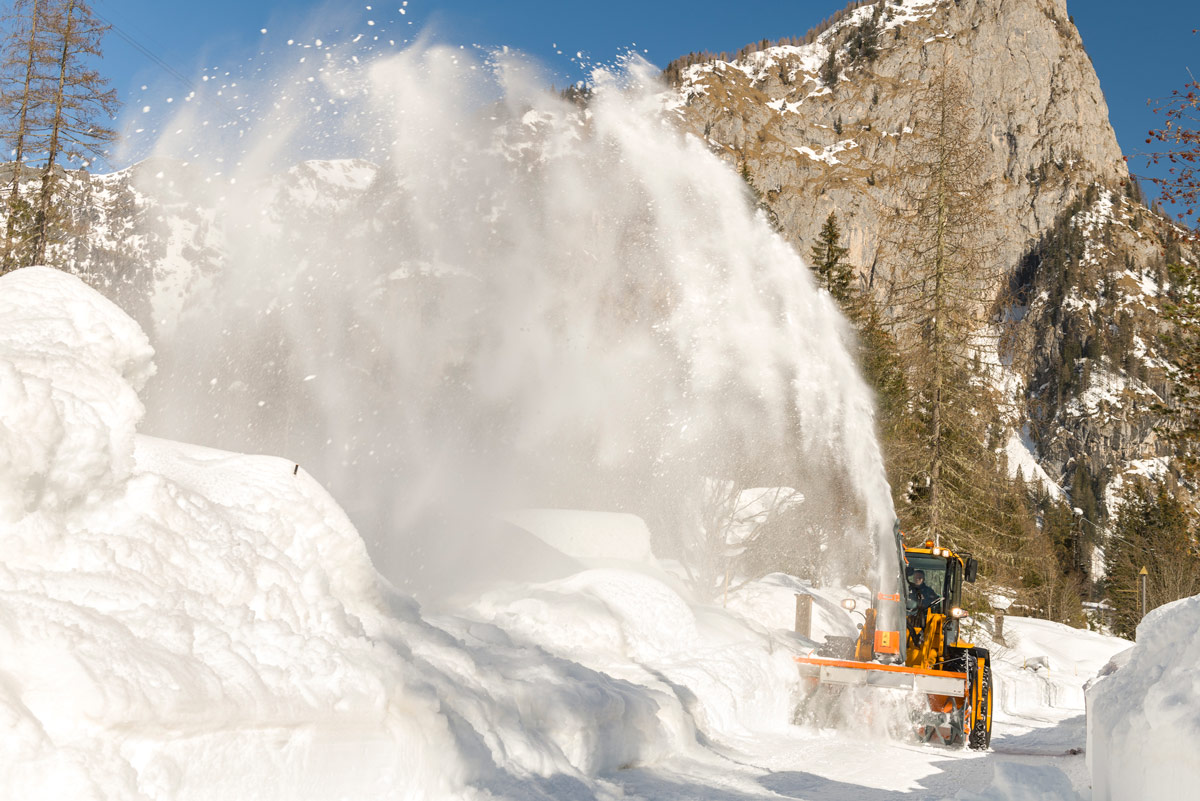

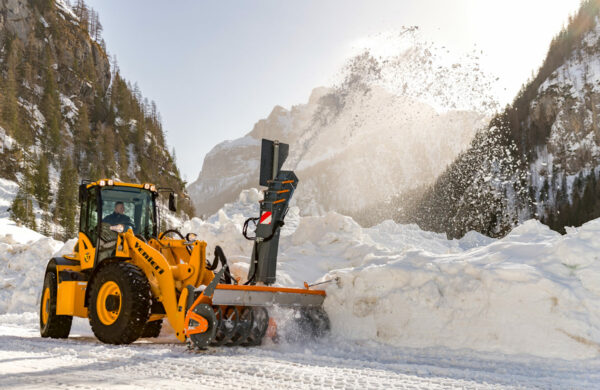

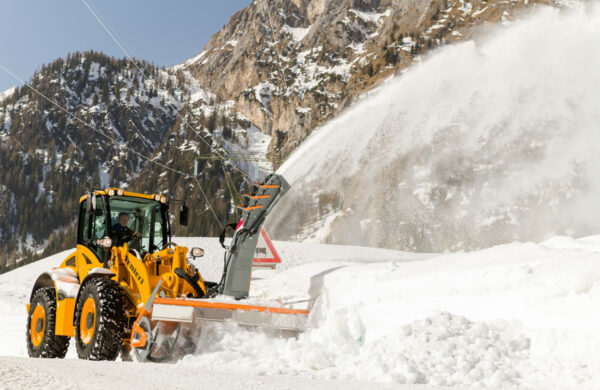

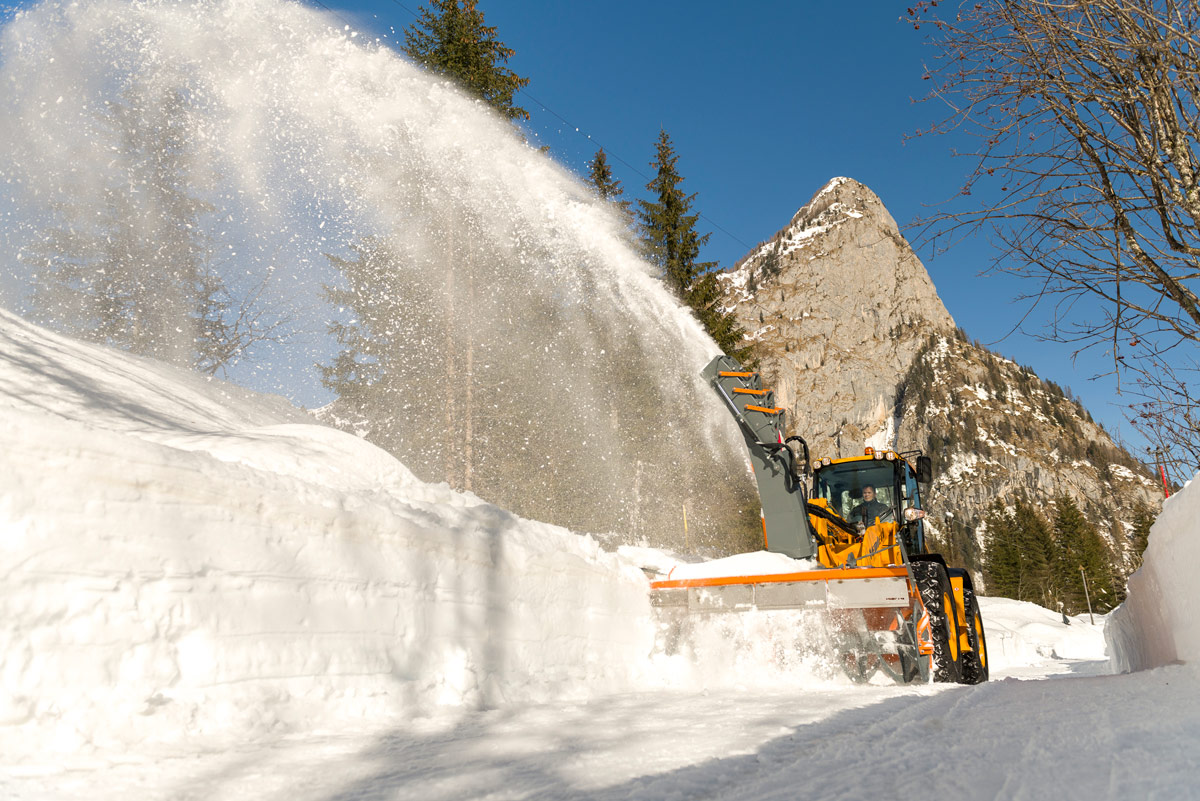

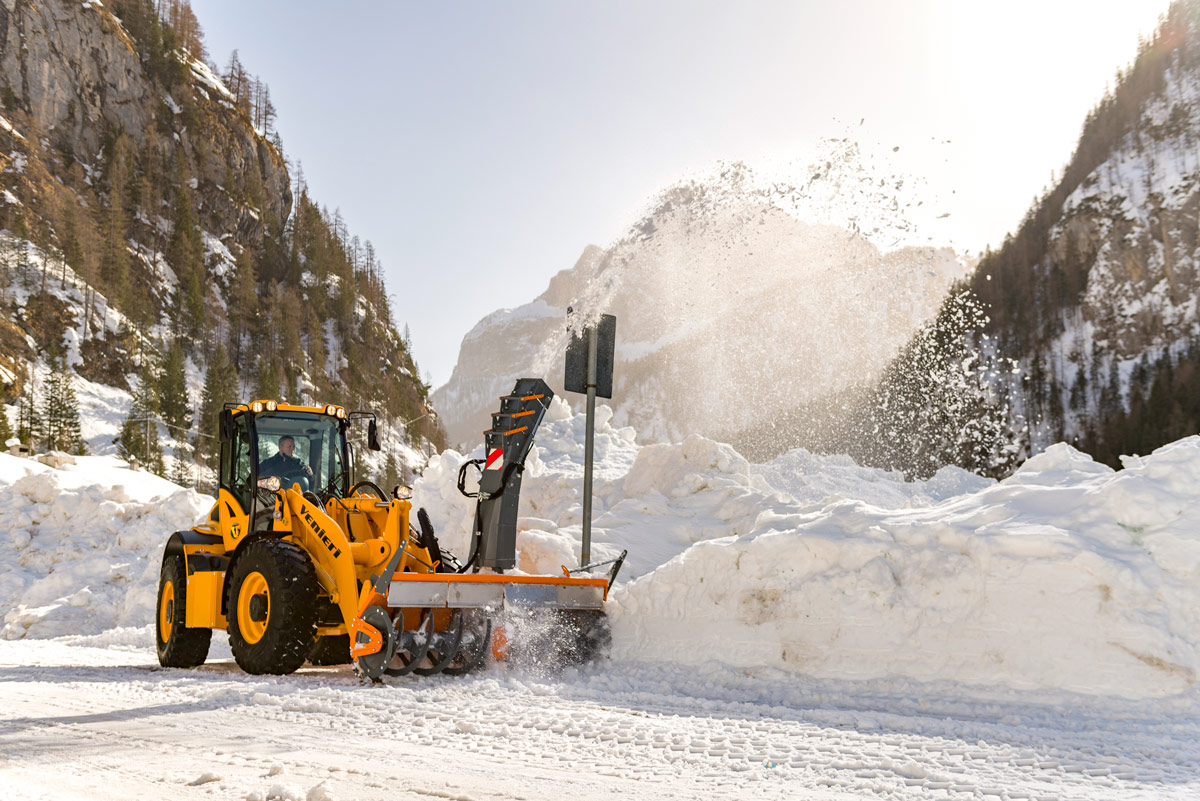

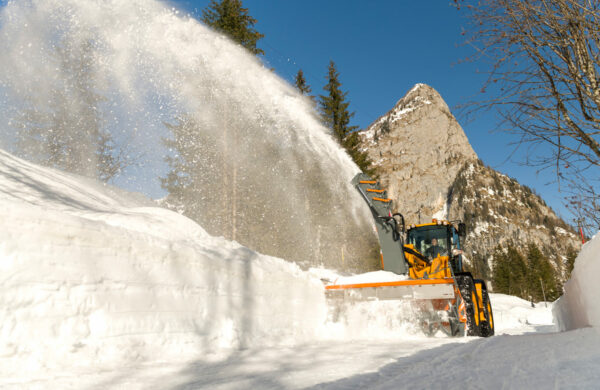

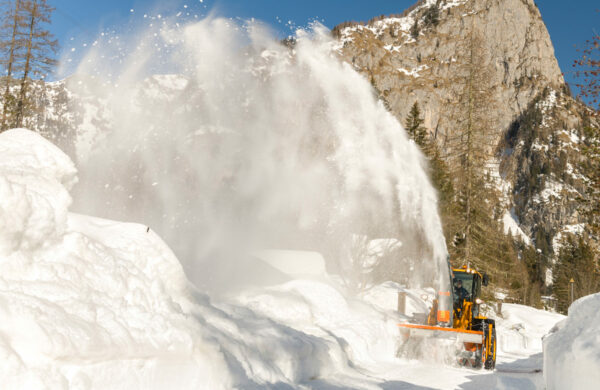

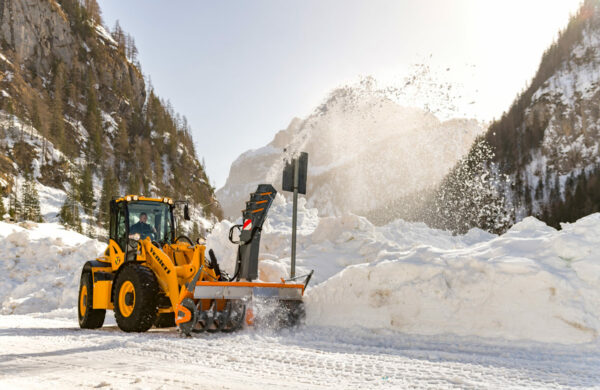

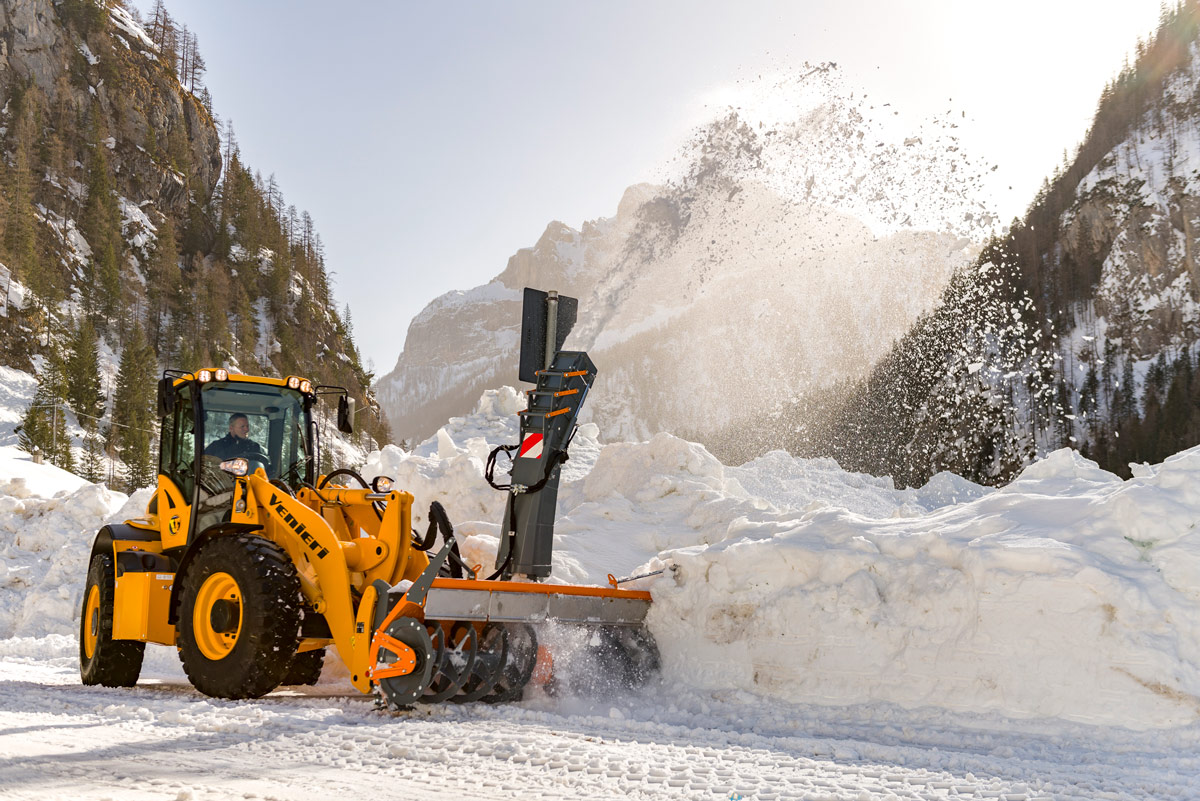

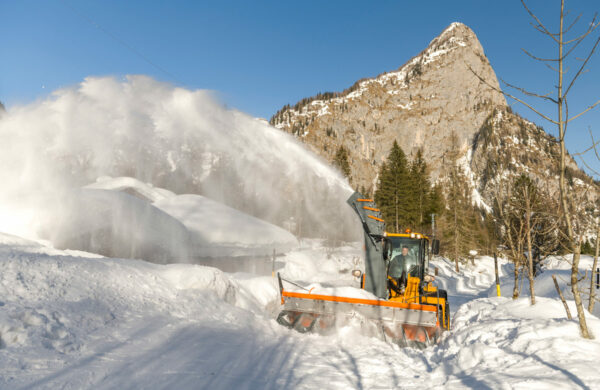

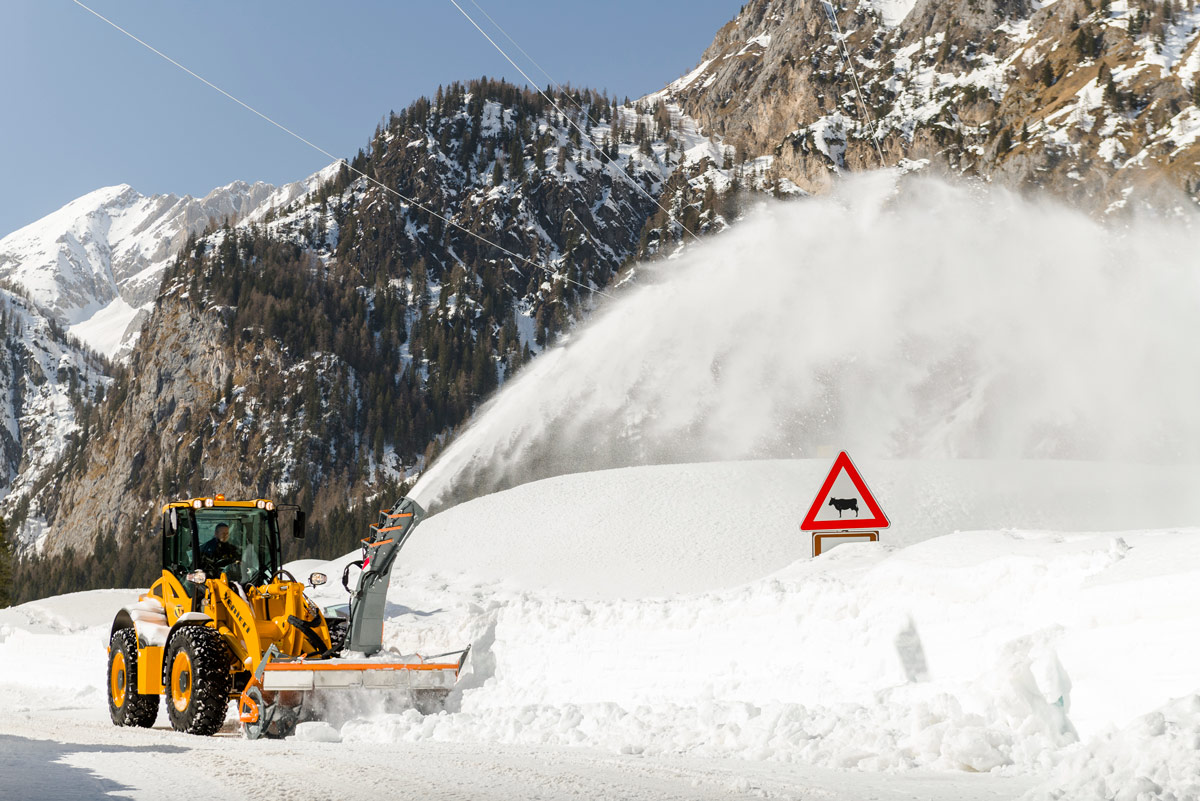

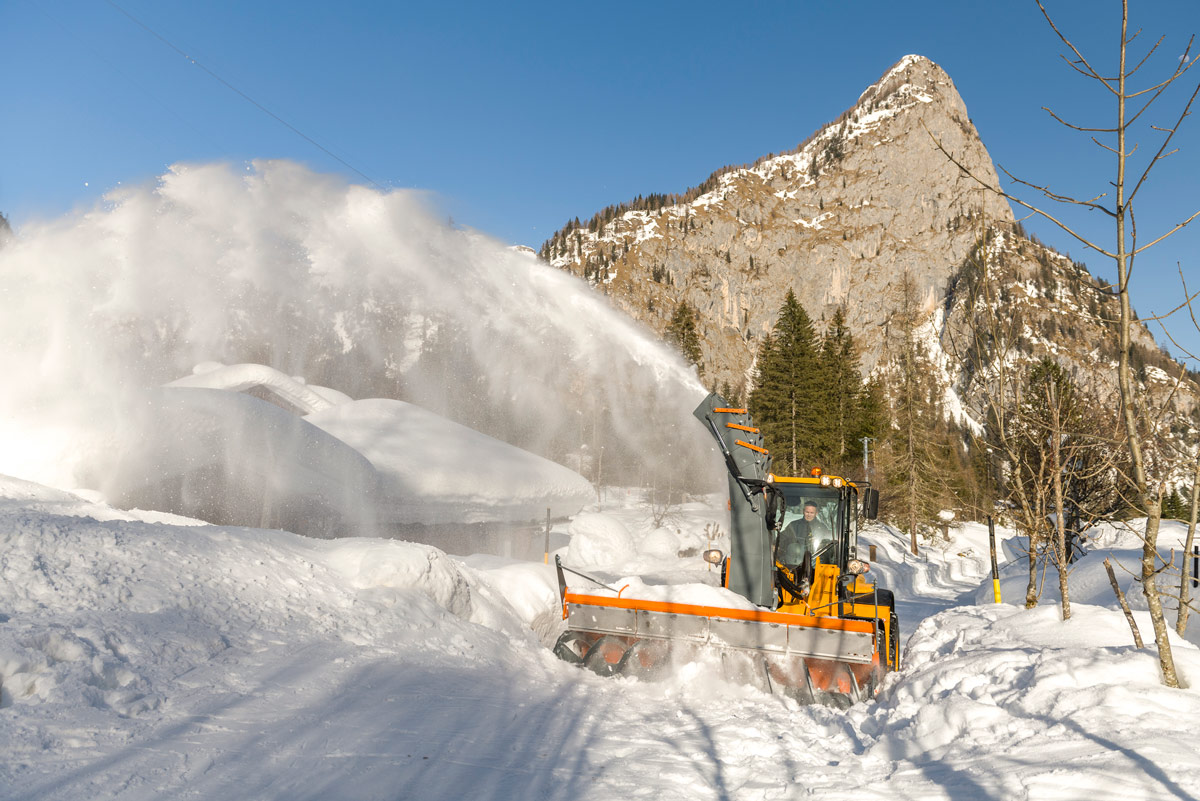

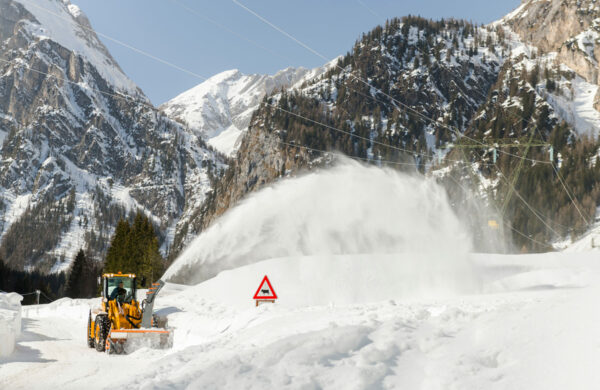

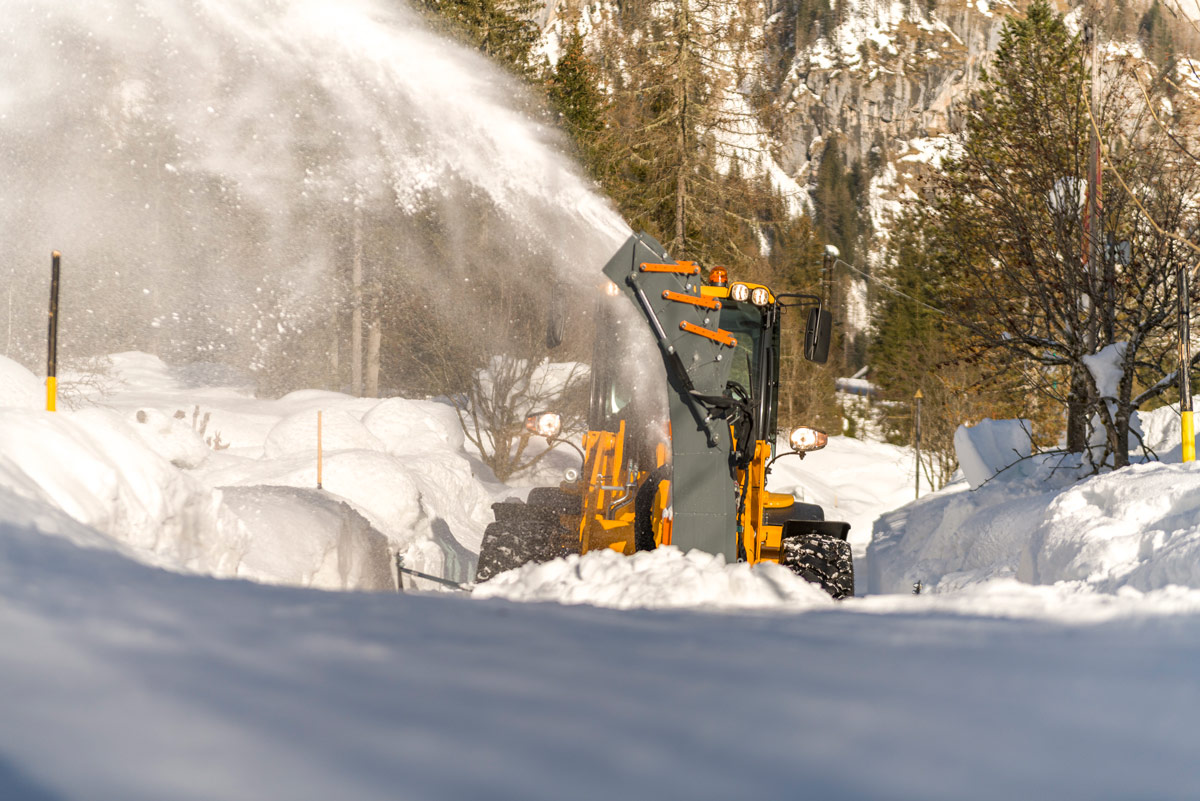

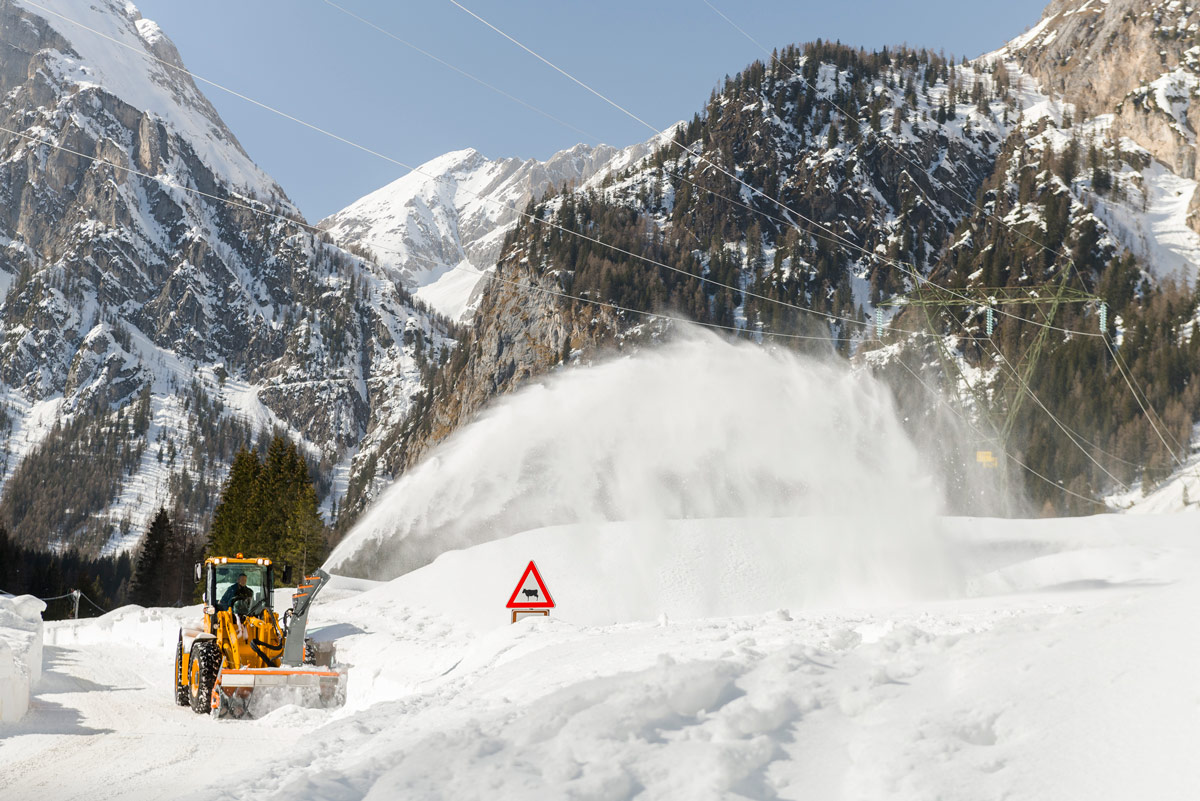

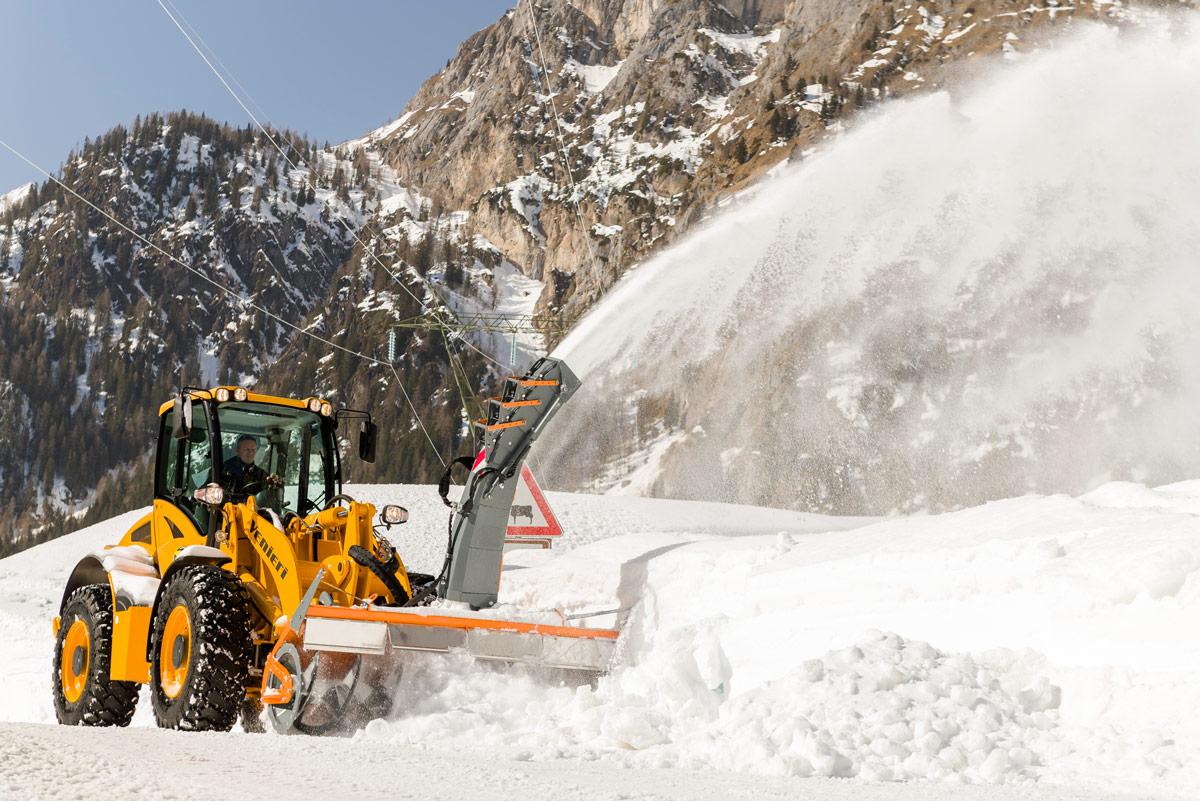

• Snow blower
• Snow blade or “V” blade
• Angle-tilt dozer
• Hand hammer
• Sweeper
• Trencher
• High-tip bucket
• High-flow system
• Unpressurized return line
• Double auxiliary system
• Rear hydraulic outlets (single effect)
