Linkage “VZPK”
Engine Max Power 53 HP
Engine Emission TIER 4f
Breakout Force 8,466 lbs
Static Tipping Load, Full Turn 4,079 lbs
Bucket Capacity, Min/Max 0.65 – 1.0 cu/yd
Max Weight 7,937 lbs
Tyres 12 – 16,5
Forks Load Capacity (EN 474-3) 2,434 lbs
Max Speed 25 mph

BASIC MACHINE

• Battery main switch
• Tool box
• Plugs with keys for fuel and hydraulic tanks
• Proportional self lock front differential
• Trailer coupling
• Warning beacon
• Soundproofing
• Spare parts calatogue
• User manual
• Type-approval for road traffic
• Safety clamp for bucket and lifting cylinders
• Autolevelling ground
• level for bucket
  Service brake on front axle

CABIN EQUIPMENT

• 4 post Canopy homologated ROPS/FOPS I
• Front and rear windscreen wiper with washer (only for closed cabin)
• LED work lights (2 front + 2 rear)
• Document compartment
• Seat with mechanical suspension
• Buzzer
• Cabin carpet
• Radio preparation (only for closed cabin)
• Supplementary socket 12V
• Ceiling lamp (only for closed cabin)
• Rear view mirrors
• Seat belt
• Instrumentation and dashboard with LCD display

BASIC MACHINE

• Fuel preheating (cold climates)
• Proportional self lock rear differential
• Differential lock 100 % engageable in front axle
• Speed reduction kit
• Inch pedal integrated in brake pedal
• Greasing points grouped on the frame
• Automatic centralized greasing system
• Ride control
• Engine preheating system
• Enviromentally-friendly hydraulic oil
• Hydraulic oil ISO 46 (cold climates)
• Cyclone dust separator

CABIN EQUIPMENT

• Foldable Roll-Bar homologated ROPS
• FOPS I
• Closed cabin homolgate ROPS/FOPS I, pressurized and soundproofed
• Seat with pneumatic suspension
• Seat with pneumatic suspension and heating
• Clothes hangers
• Manual Air
• Conditioning “Climatronic Venieri” system
• Heatable rear view mirrors
• First-aid kit
• Fire extinguisher 2kg
• Safety glass breaker

SPECIAL EQUIPMENT

• Safety glass breaker
• Cement mixing bucket
• Multipurpose bucket (4 in 1)

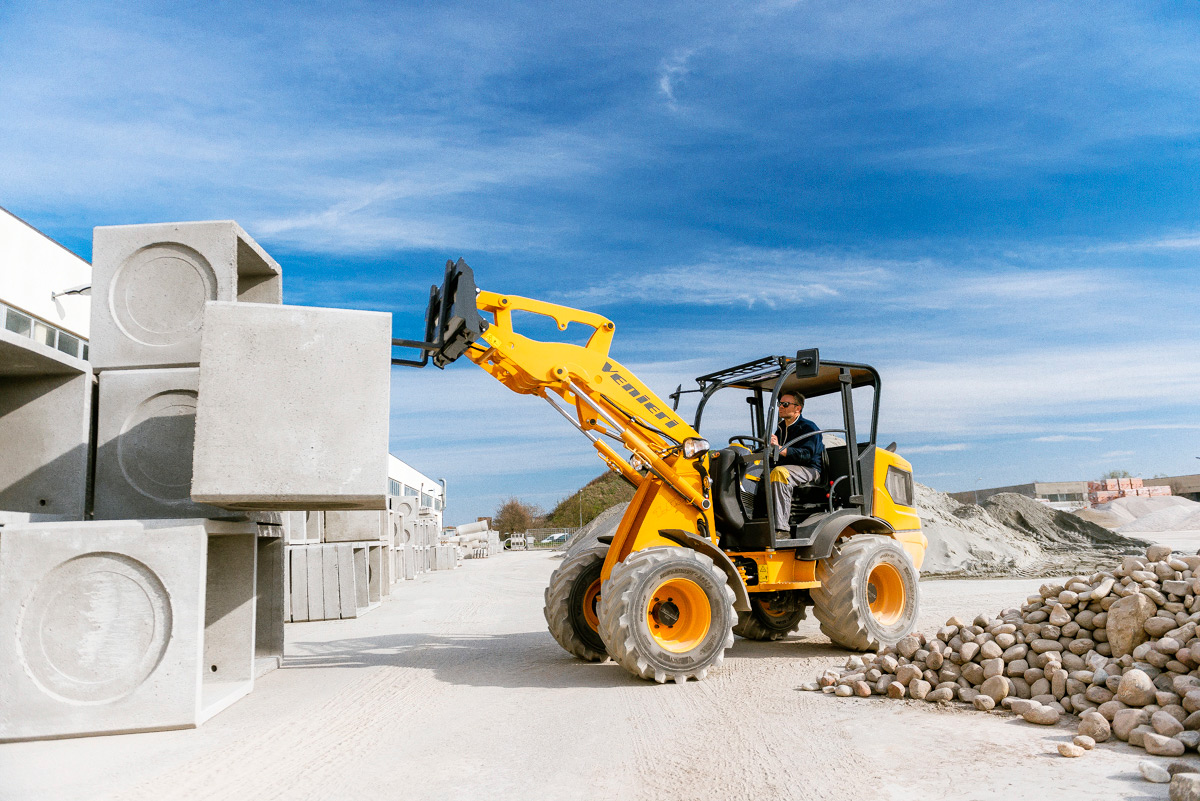

• Lifting forks
• Agricoltural fork with hydraulic grapple whidth

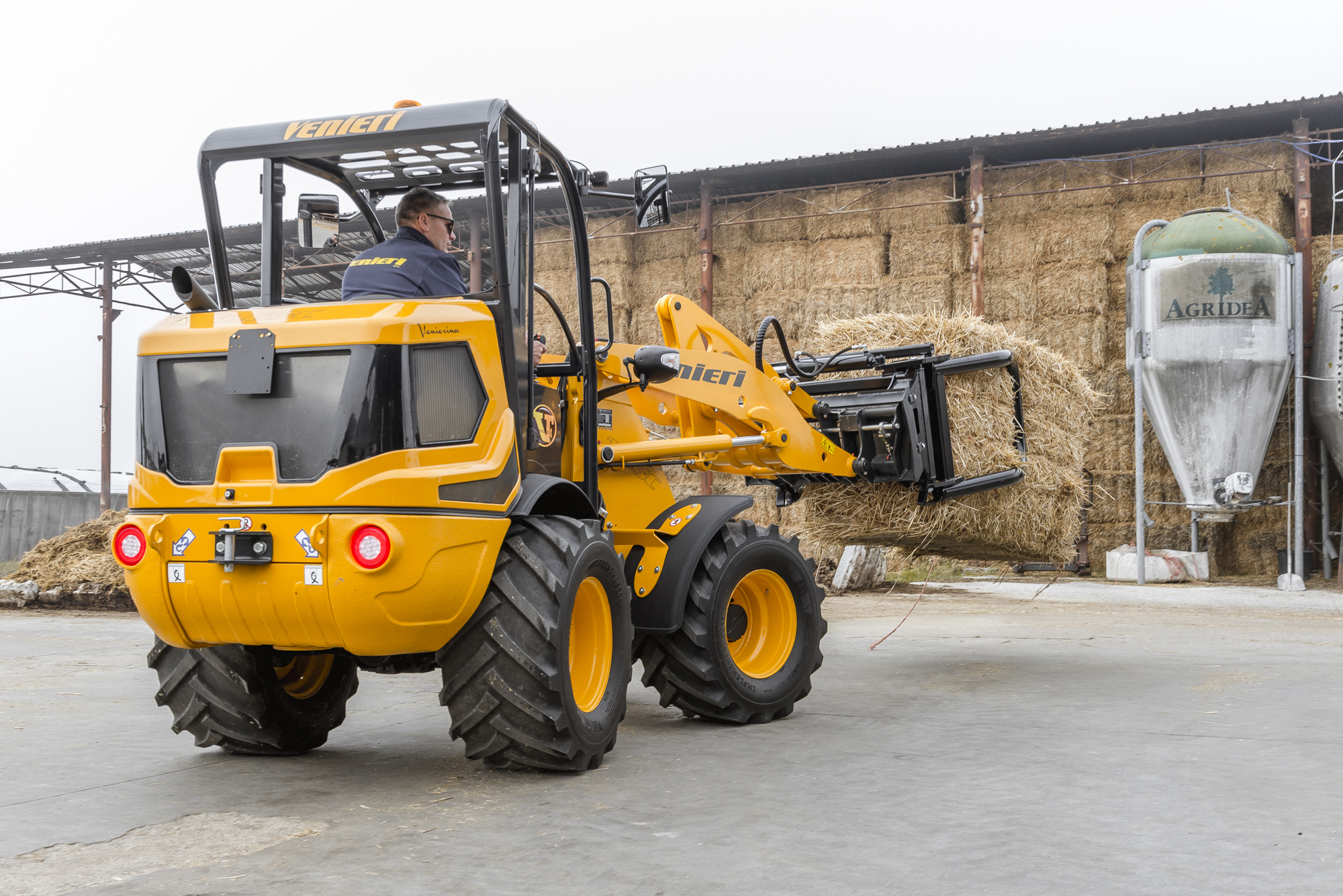

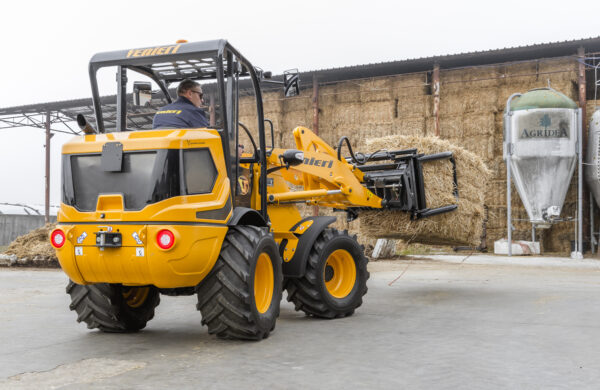

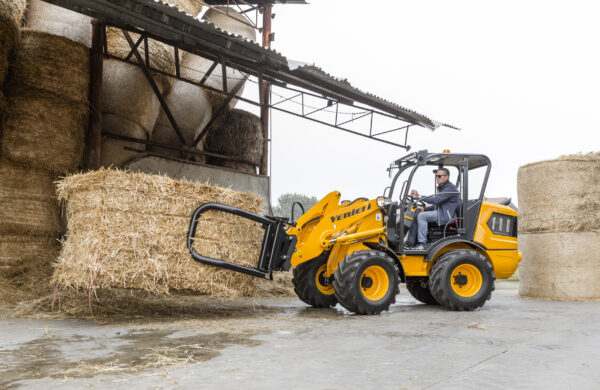

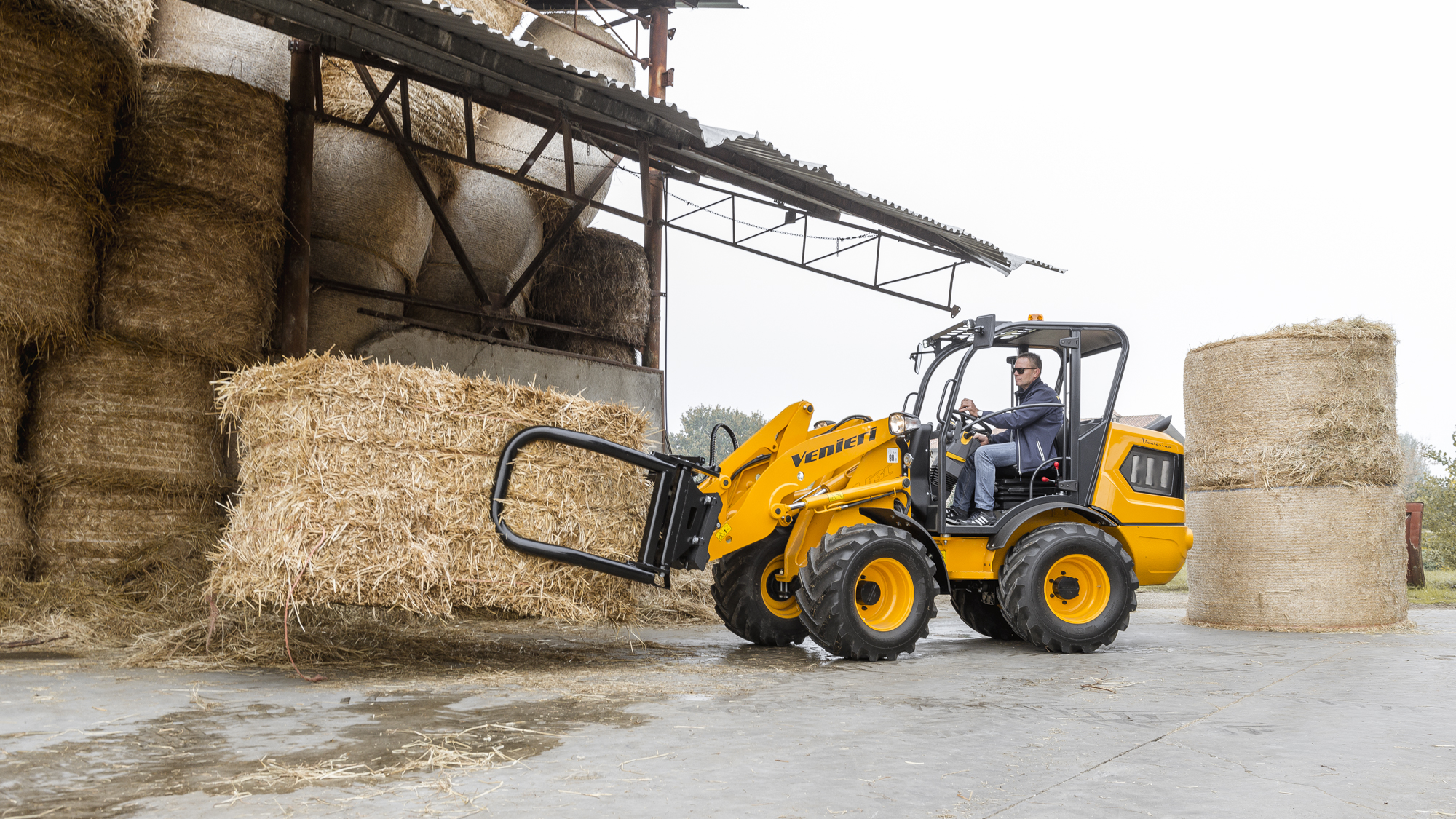

• Grab for wrapped bales
• Bucket with hydraulic grapple

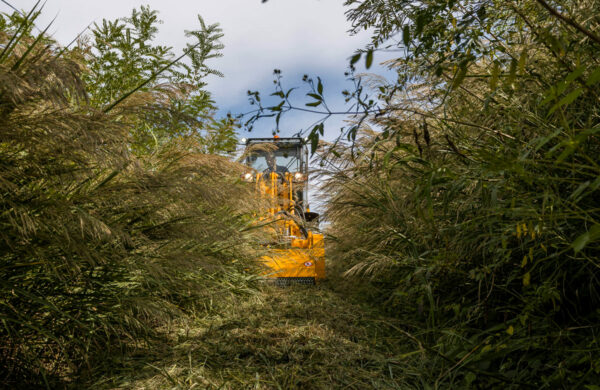

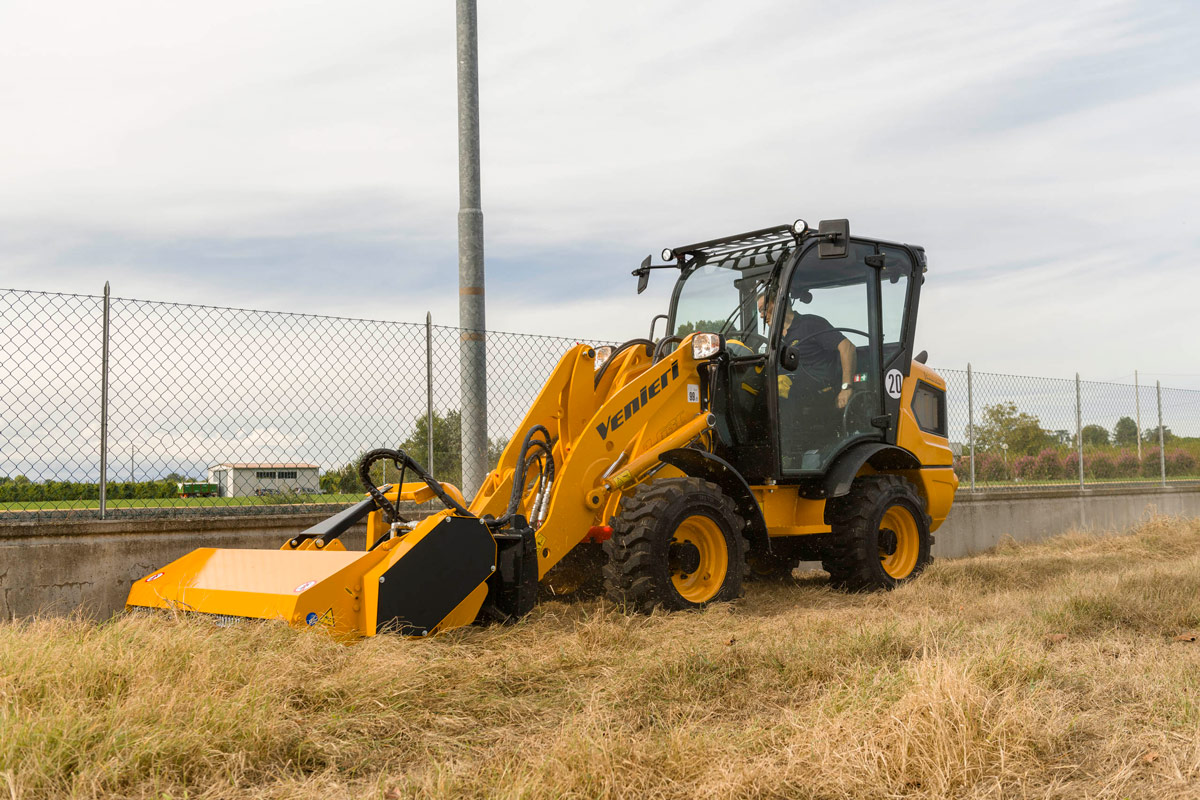

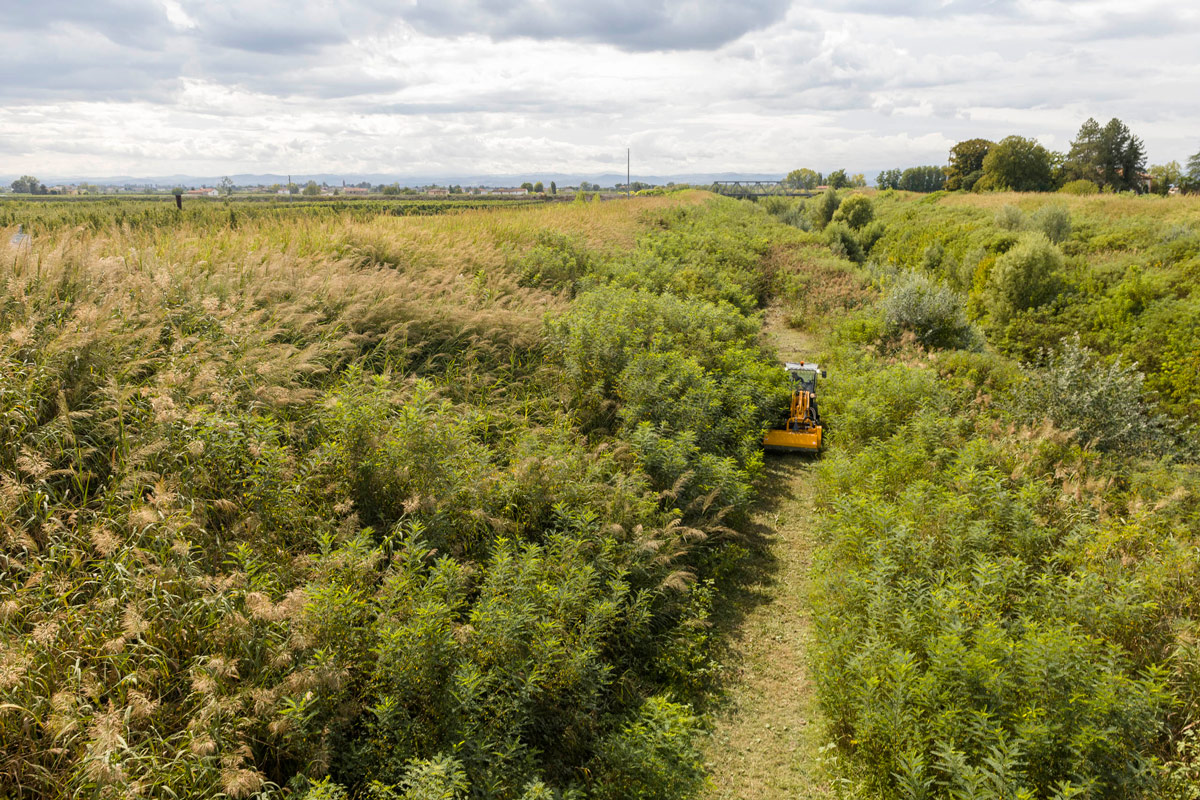

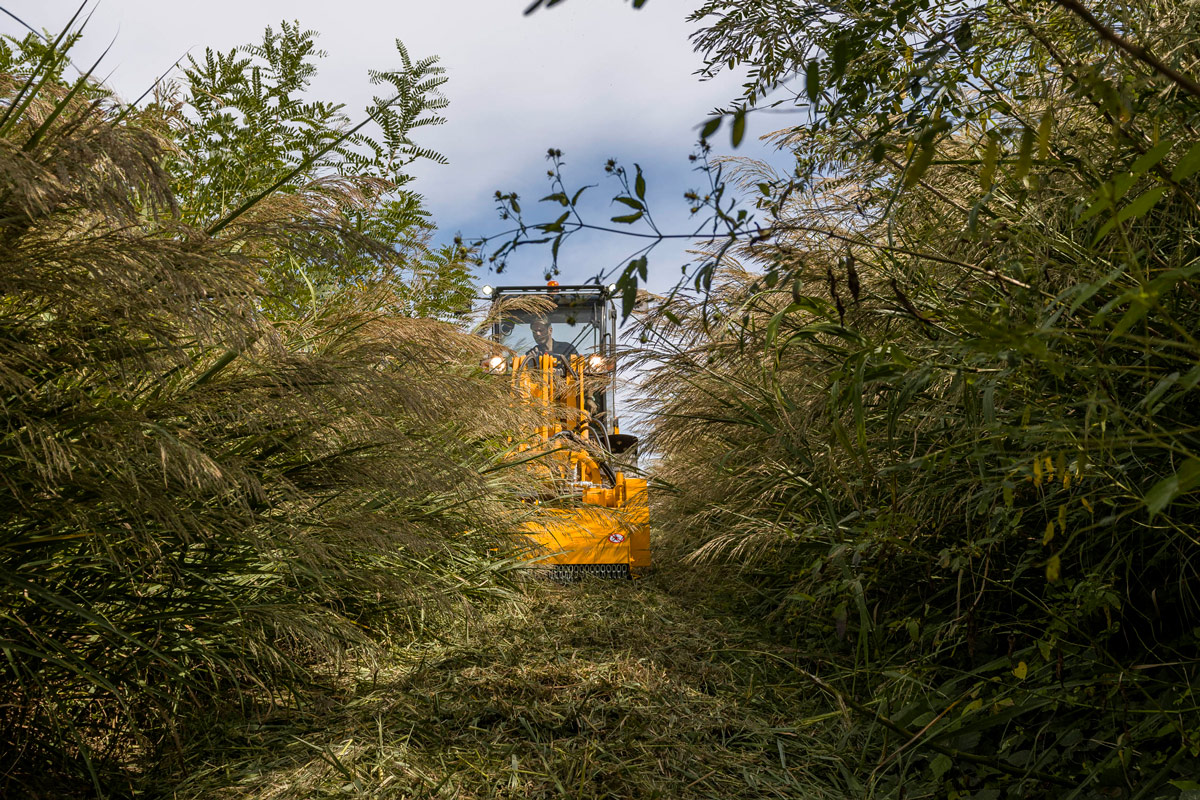

• Front cutting head

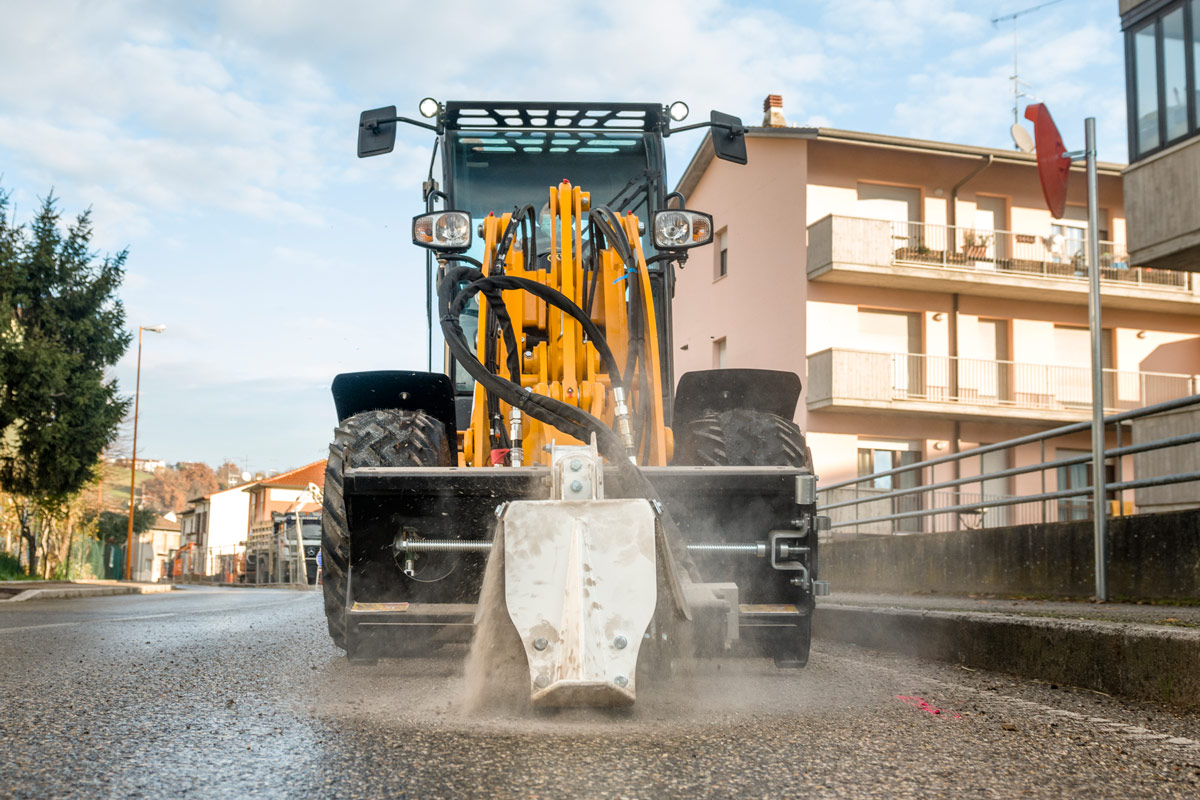

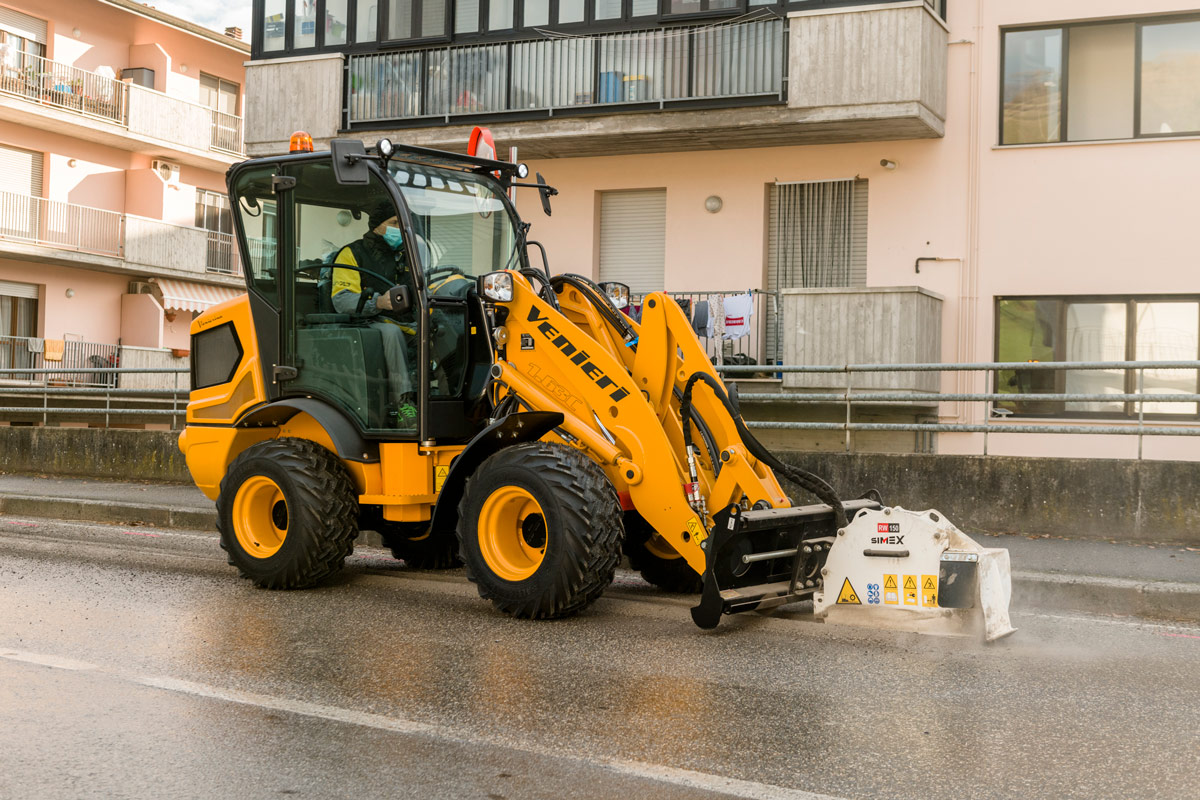

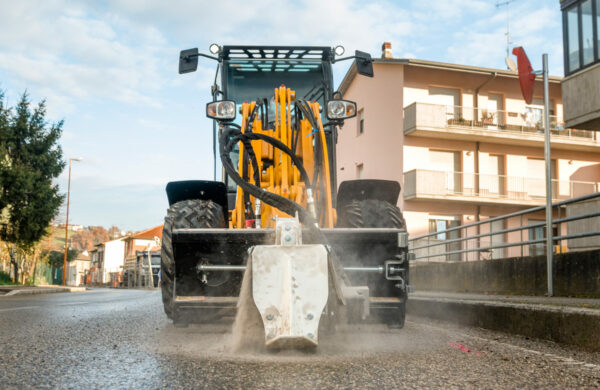

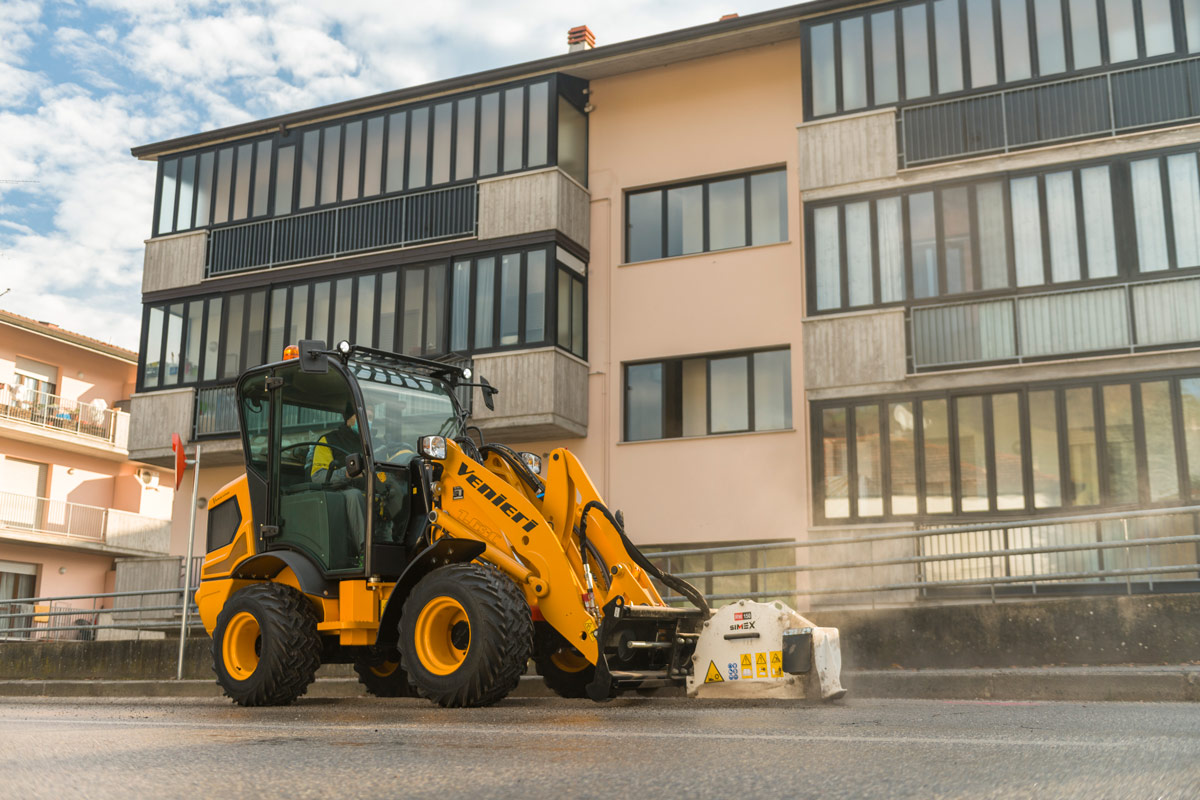

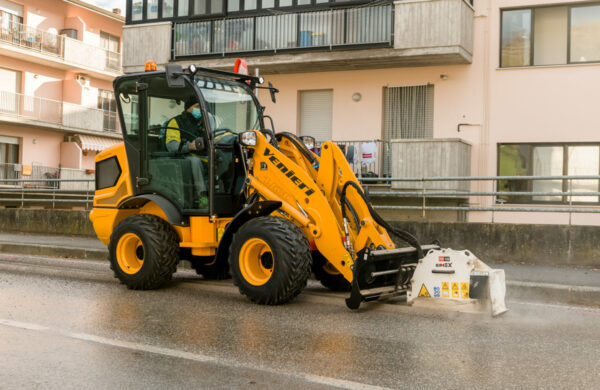

• Asphalt and cement planer

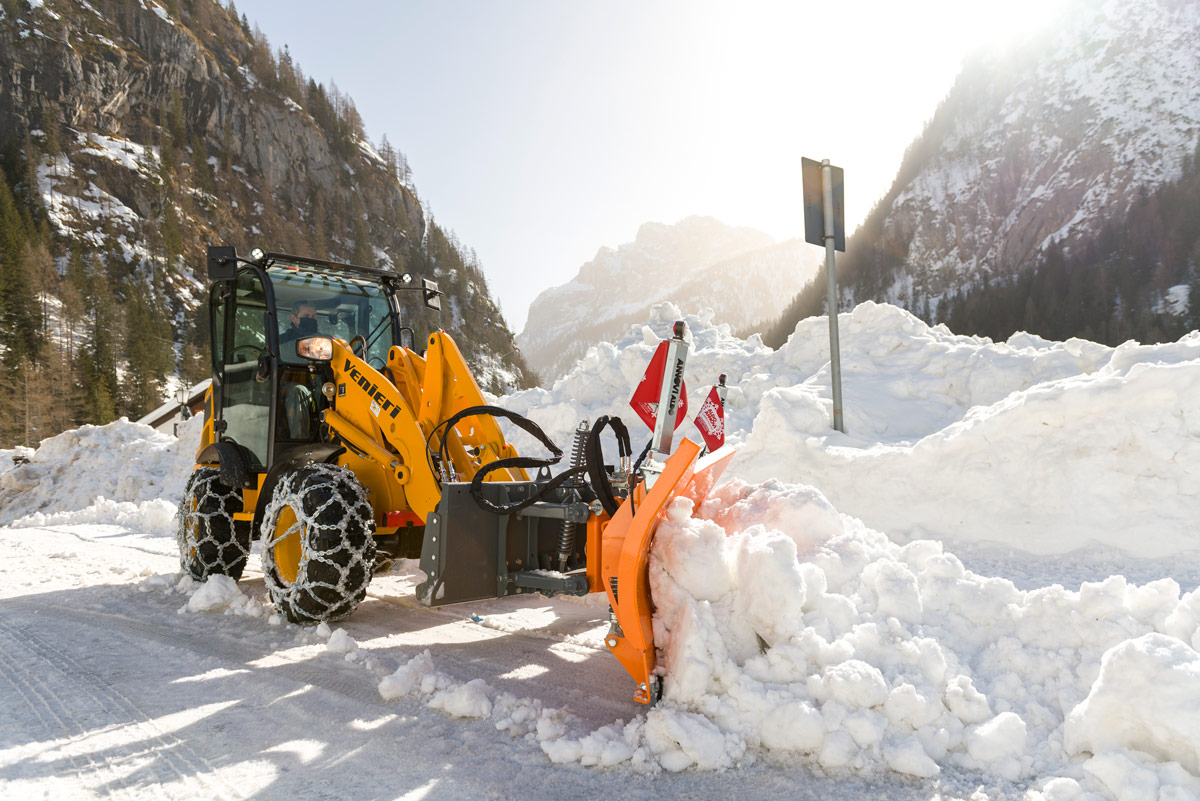

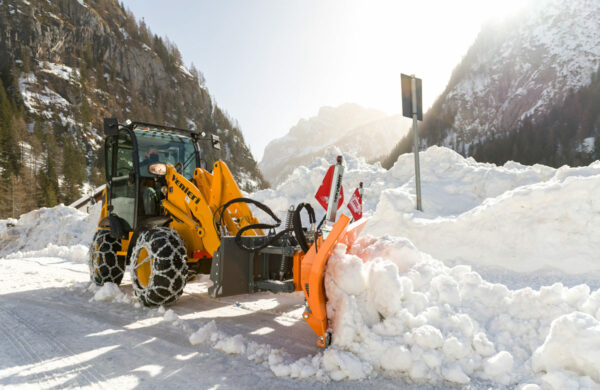

• Snow blower

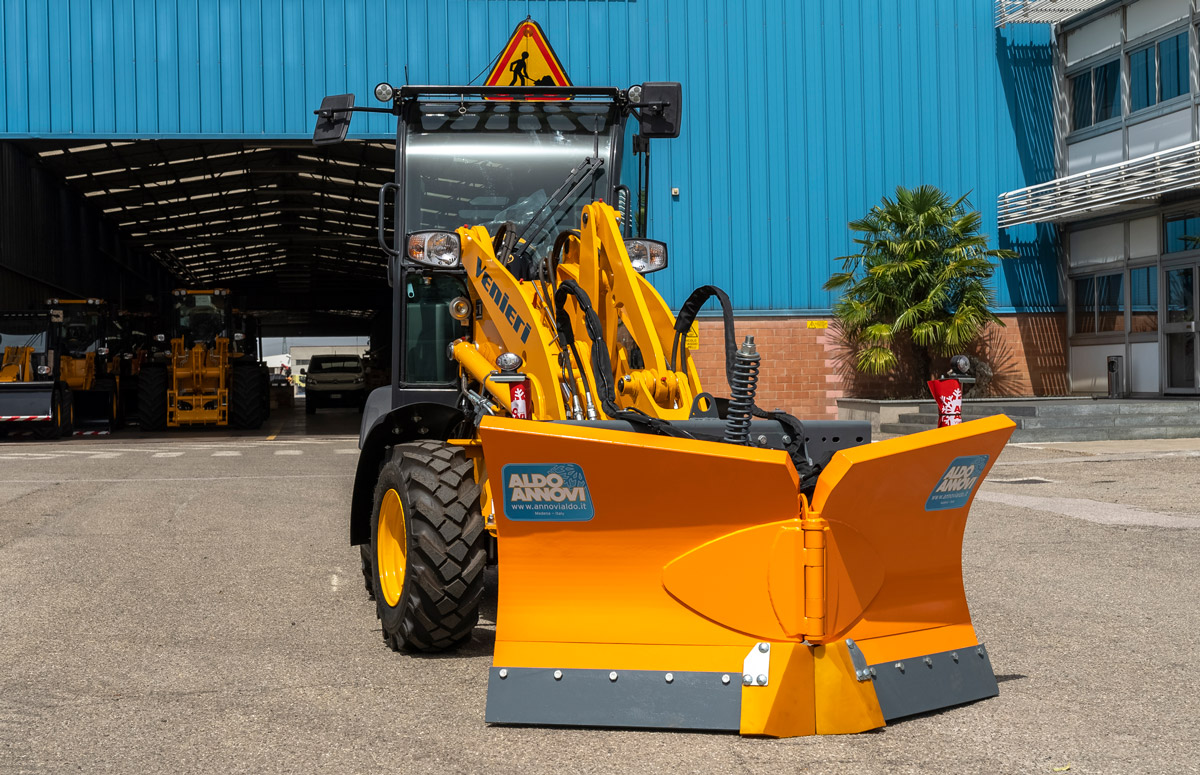

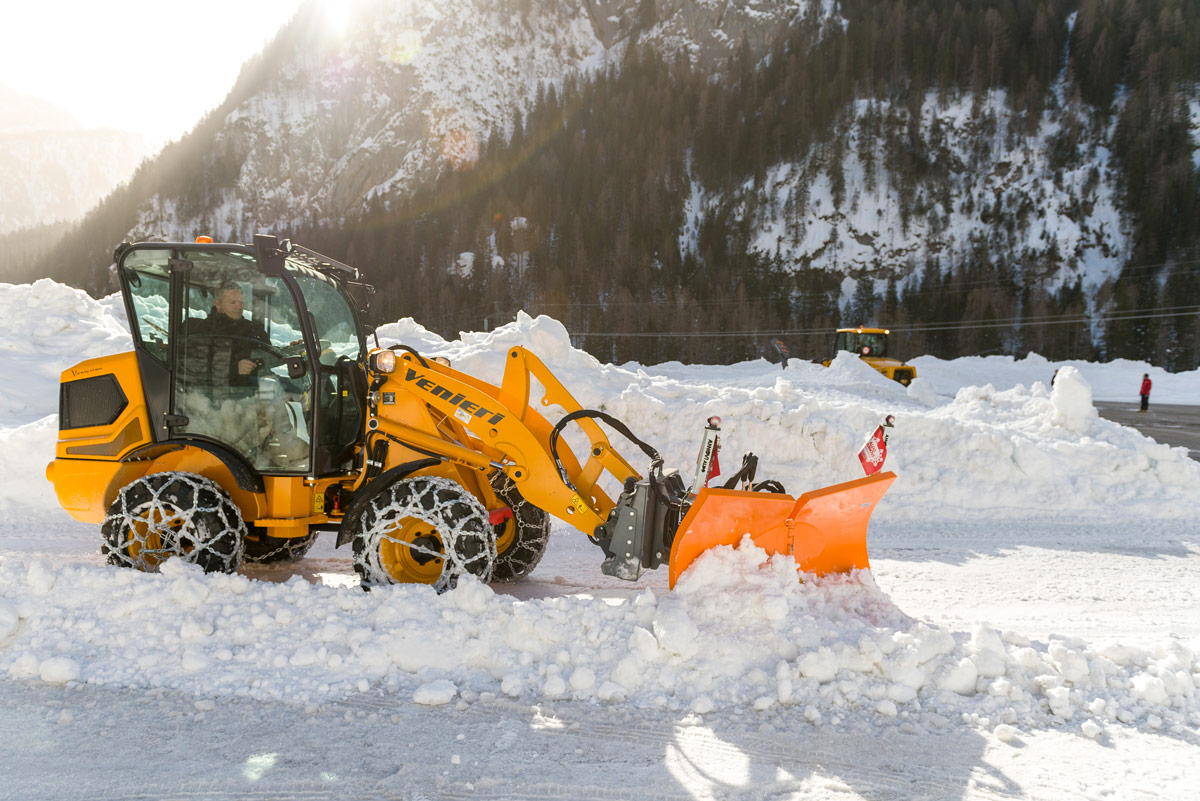

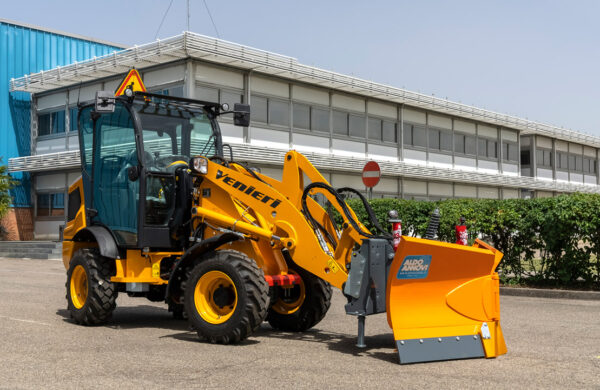

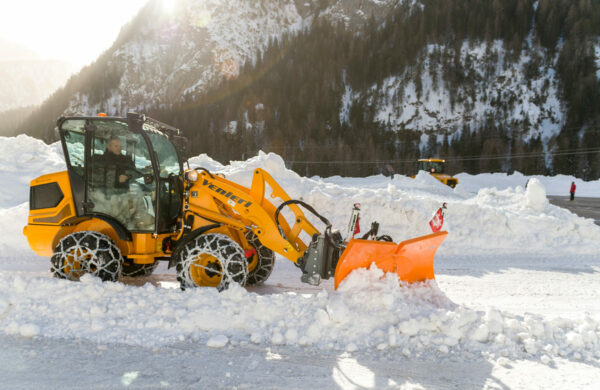

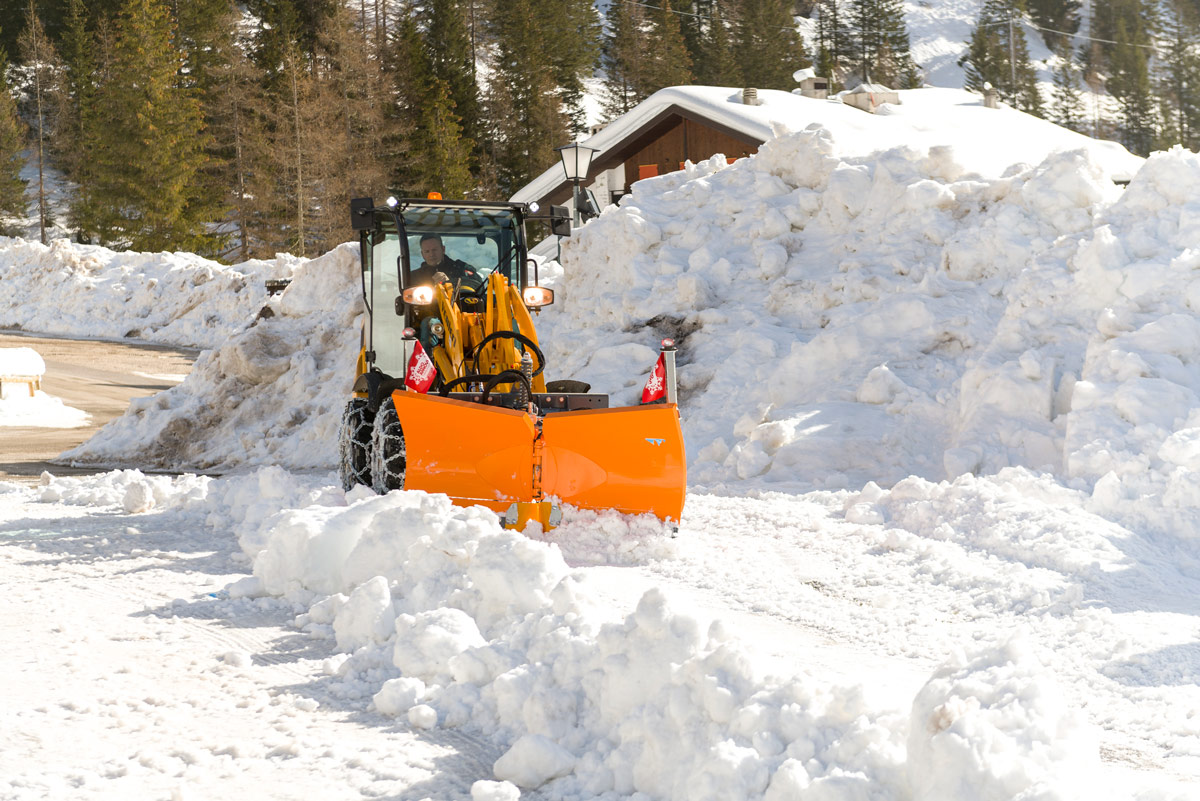

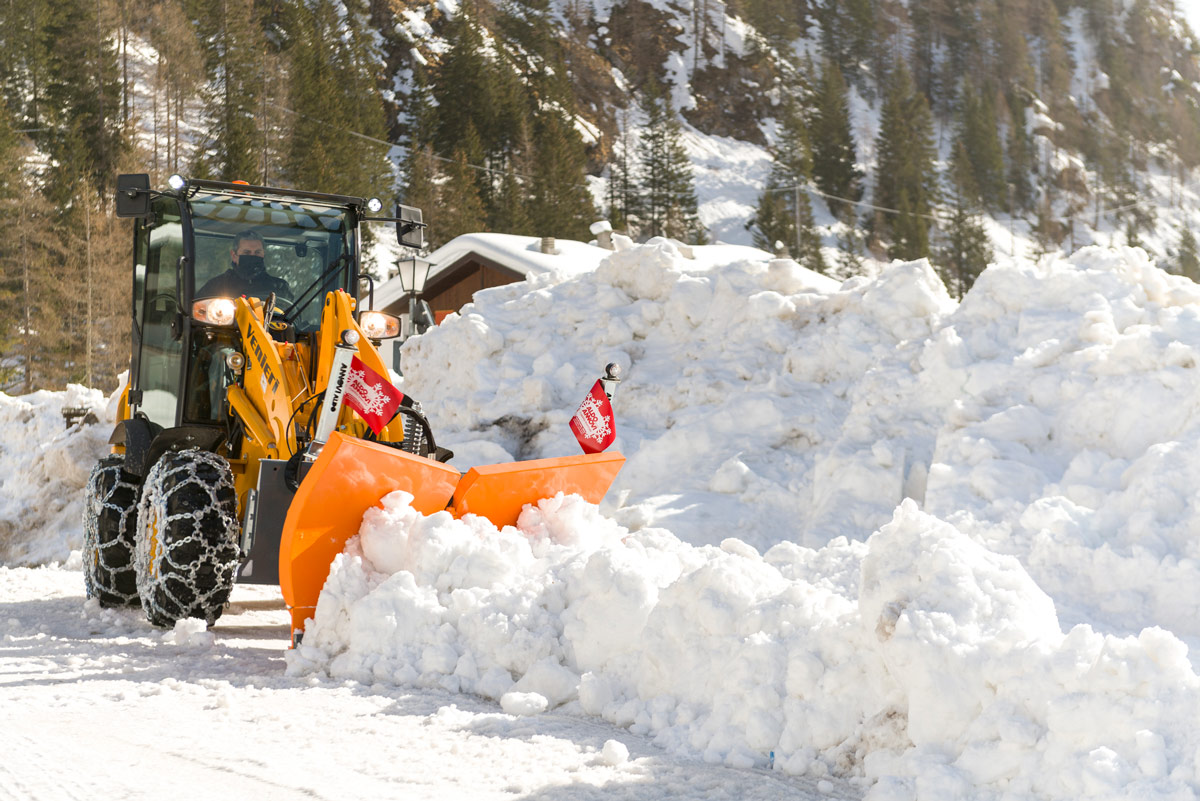

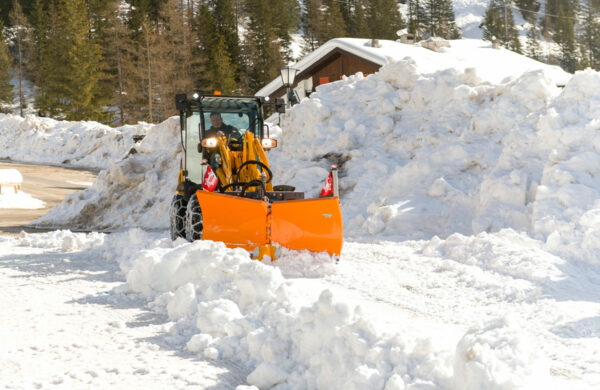

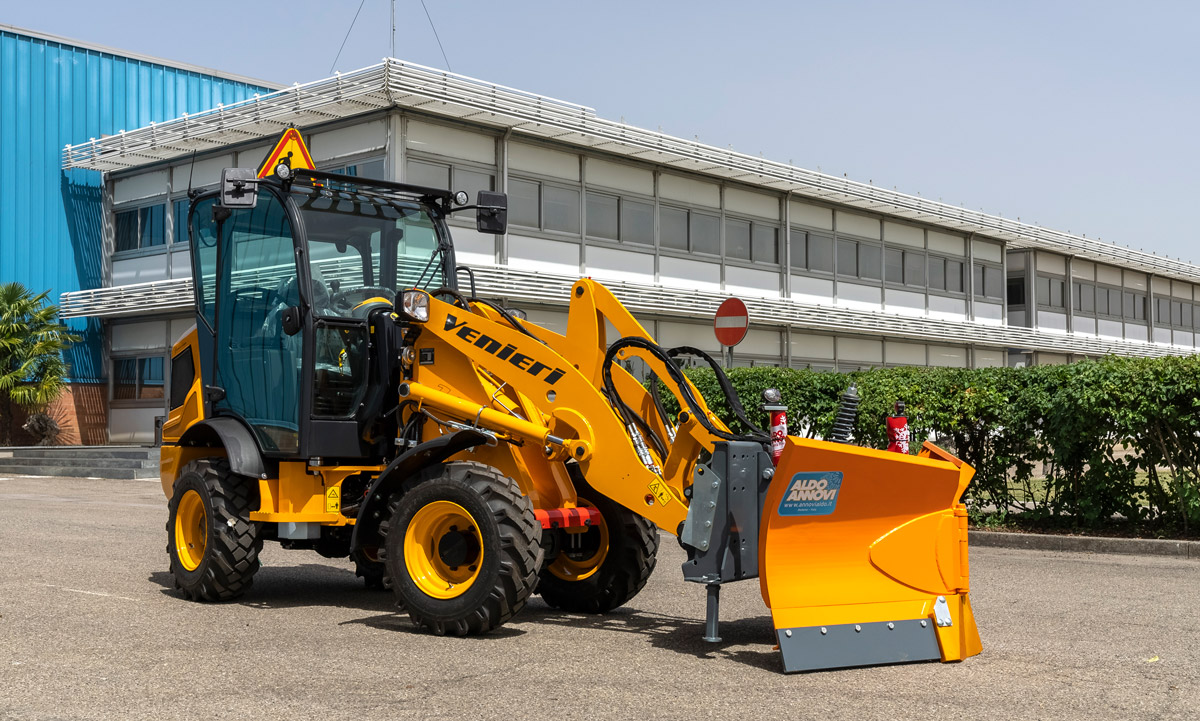

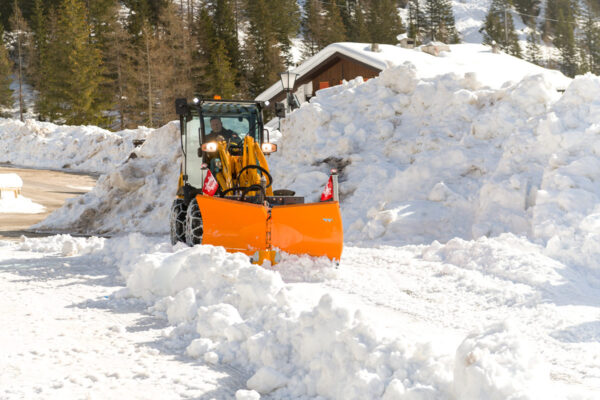

• Snow blade and “V” type snow blade
• Angle-tilt dozer blade
• Hand operating hammer

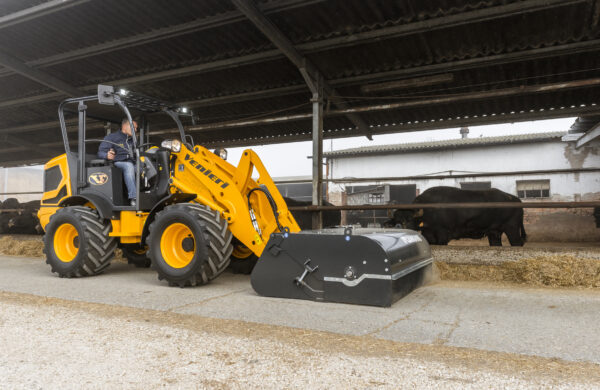

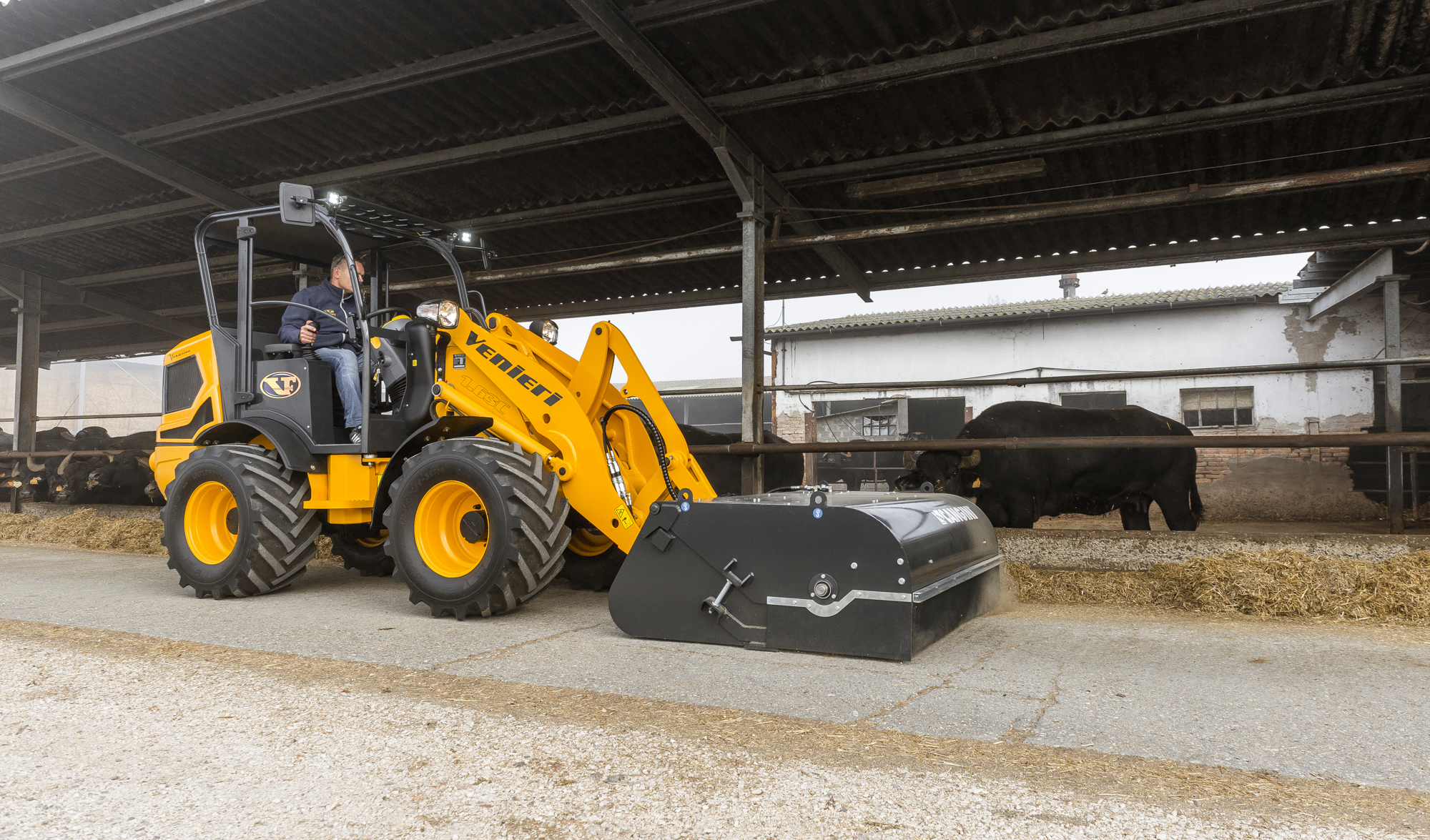

• Polishing brush
• Trencher
• Auger
• High tip bucket
• High flow kit
• Unpressurized return pipe
• Double auxiliary line
• Rear hydraulic line (single effect)
